The recommended operating temperature range for the T602-020.0M is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate up to +125°C for short-term exposure, but this may affect its long-term reliability.
To ensure reliable startup, make sure to follow the recommended power-up sequence, which involves applying power to the VDD pin before the enable pin (EN). Additionally, ensure that the power supply is stable and within the recommended voltage range (1.8V to 3.3V).
The typical current consumption of the T602-020.0M is around 10mA, but this can vary depending on the specific application, operating frequency, and output load. It's essential to check the datasheet for the exact current consumption specifications.
Yes, the T602-020.0M is designed to operate in high-vibration environments. It's built with a rugged design and can withstand vibrations up to 20G peak acceleration. However, it's crucial to ensure proper mounting and soldering to prevent mechanical stress on the device.
The output frequency of the T602-020.0M is fixed at 20MHz, and it's not adjustable. If you need a different frequency, you may need to consider a different oscillator model or use an external frequency divider/multiplier circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
T602-020.0M Overview

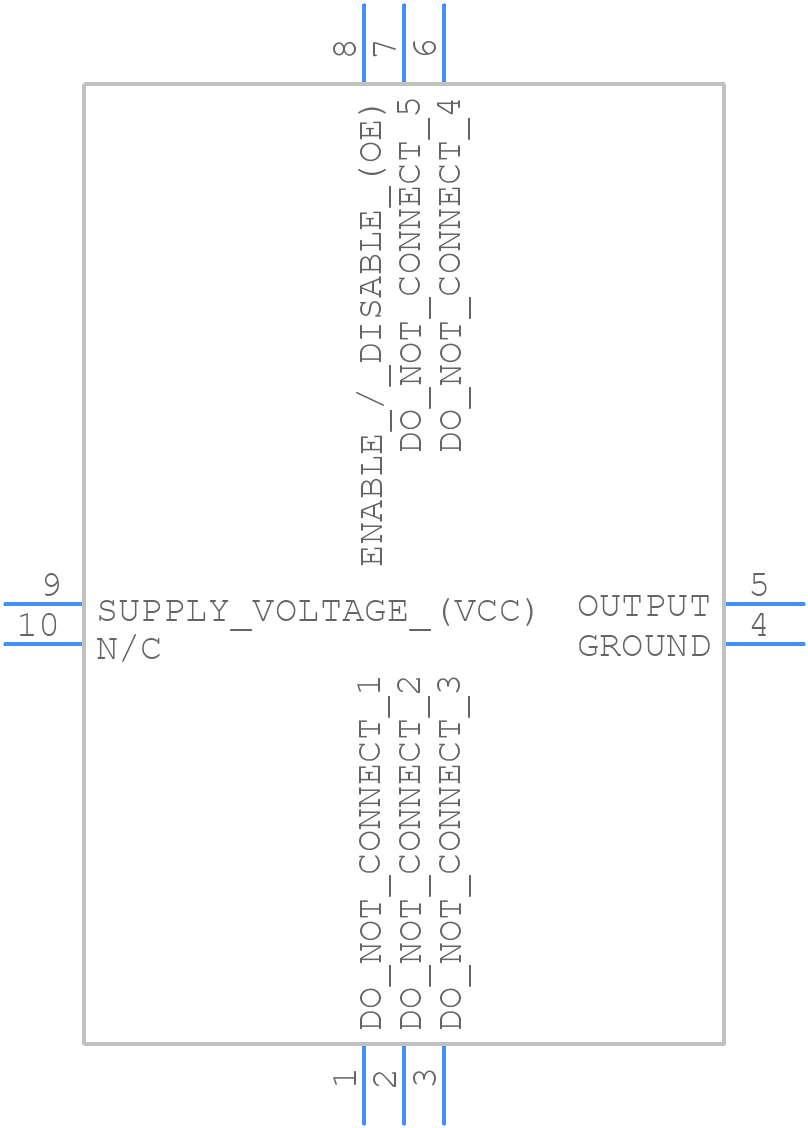

Use the download button to access the T602-020.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T602-,
or try a keyword search, such as TCXO
