T60405-R6123-X227 - Vacuumschmelze

Description: 2.8 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 2.9 kOhms @ 100 kHz 25A DCR

Download T60405-R6123-X227 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T60405-R6123-X227 - Vacuumschmelze - PCB symbol
click to zoom
PCB Footprints

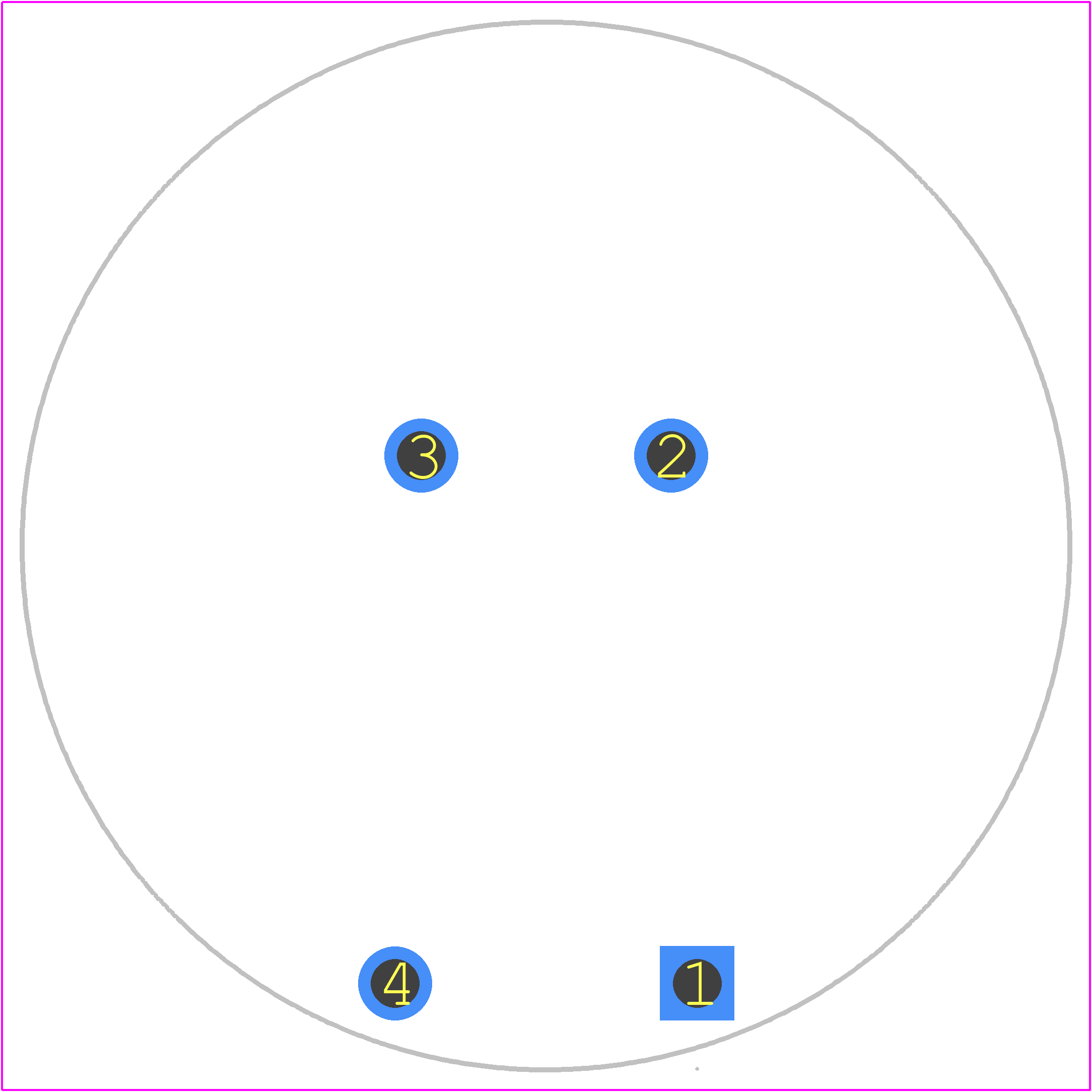

T60405-R6123-X227 - Vacuumschmelze PCB footprint - Other - Other - T60405-R6123-X227-7
click to zoom
3D Models
T60405-R6123-X227 - Vacuumschmelze - 3D model - Other - T60405-R6123-X227-7
click to zoom

T60405-R6123-X227 Details

  • Manufacturer Part Number:

    T60405-R6123-X227

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Vacuumschmelze GmbH & Co KG

  • Additional Feature:

    IMPEDANCE AT 100 KHZ

  • Diameter:

    52 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    32 mm

  • Inductance:

    12000 µH

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    2900 OHM Ω

  • Rated Current:

    25 A
