T74LS14B1 - STMicroelectronics

T74LS14B1 Details

• Manufacturer Part Number:

  T74LS14B1

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

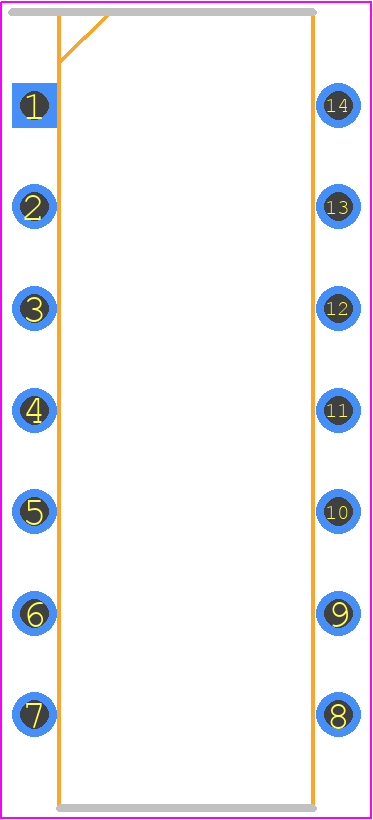

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Family:

  LS

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e0

• Length:

  20 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  INVERTER

• Max I(ol):

  0.008 A

• Number of Functions:

  6

• Number of Inputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  21 mA

• Prop. Delay@Nom-Sup:

  22 ns

• Propagation Delay (tpd):

  22 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  YES

• Seated Height-Max:

  5.1 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
