T821108A1R100CEU - Amphenol

Description: HEADER, RA, 2.54MM, 8WAY Amphenol T821 Series, 2.54mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination, 3A

Download T821108A1R100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821108A1R100CEU - Amphenol - PCB symbol
click to zoom

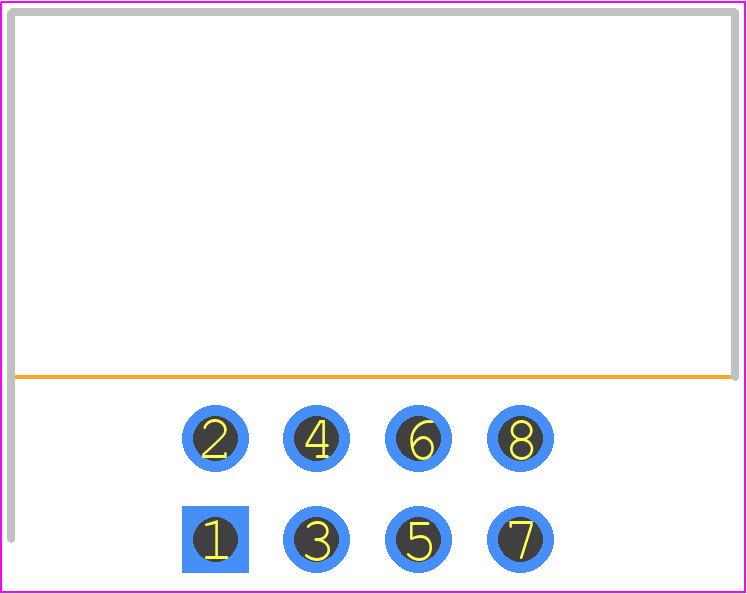

PCB Footprints
T821108A1R100CEU - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - T821108A1R100CEU
click to zoom
3D Models
T821108A1R100CEU - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - T821108A1R100CEU
click to zoom

T821108A1R100CEU Details

  • Manufacturer Part Number:

    T821108A1R100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

T821108A1R100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals of the T821108A1R100CEU is 0.5-0.8 Nm (5-8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the T821108A1R100CEU is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2-200 Hz.
  • The T821108A1R100CEU has a rating of IP67, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The T821108A1R100CEU has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the T821108A1R100CEU is designed to operate in humid environments. It meets the humidity requirements of IEC 60068-2-78, which means it can withstand relative humidity up to 95% at 40°C (104°F) for 56 days.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821108A1R100CEU Overview

Use the download button to access the T821108A1R100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
