T821110A1S100CEU - Amphenol

Description: Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Thru-Hole

Download T821110A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821110A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

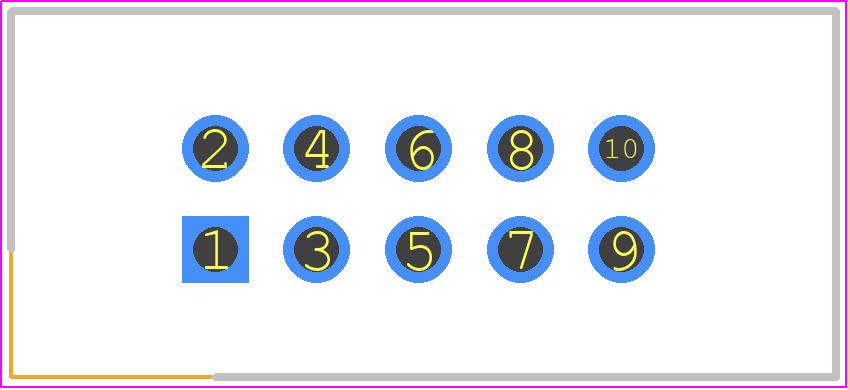

T821110A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821110A1S100CEU
click to zoom
3D Models
T821110A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821110A1S100CEU
click to zoom

T821110A1S100CEU Details

  • Manufacturer Part Number:

    T821110A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

T821110A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
  • Yes, the T821110A1S100CEU is designed to withstand high-vibration environments. The connector's rugged design and secure screw-locking mechanism ensure reliable connections even in harsh conditions.
  • Yes, the T821110A1S100CEU is designed for outdoor and harsh environmental applications. The connector's IP67 rating ensures protection against dust and water ingress, making it suitable for use in challenging environments.
  • The T821110A1S100CEU has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • While the T821110A1S100CEU is designed to be compatible with other Amphenol connectors, compatibility with connectors from other manufacturers is not guaranteed. It's recommended to consult the manufacturer's specifications and perform testing to ensure compatibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821110A1S100CEU Overview

Use the download button to access the T821110A1S100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
