T821112A1S100CEU - Amphenol

Description: HEADER, VERTICAL, 2.54MM, 12WAY Amphenol T821 Series, 2.54mm Pitch 12 Way 2 Row Shrouded Straight PCB Header, Through Hole, Solder Termination

Download T821112A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821112A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

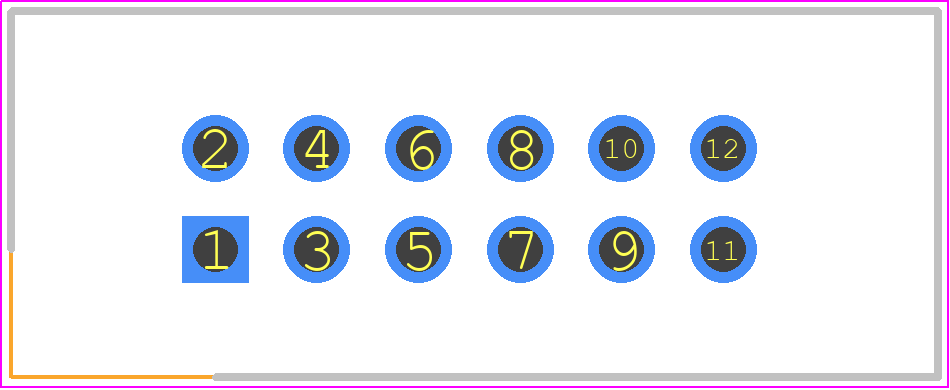

T821112A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821112A1S100CEU
click to zoom
3D Models
T821112A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821112A1S100CEU
click to zoom

T821112A1S100CEU Details

  • Manufacturer Part Number:

    T821112A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

T821112A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the T821112A1S100CEU is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302, which includes sinusoidal vibration testing.
  • The operating temperature range for the T821112A1S100CEU is -55°C to 125°C (-65°F to 257°F). However, it's essential to consider the specific application requirements and potential derating factors.
  • Yes, the T821112A1S100CEU is designed to operate in harsh environments. It has a sealed construction and meets the requirements of MIL-DTL-55302, which includes exposure to humidity, salt spray, and other environmental stressors.
  • The T821112A1S100CEU has a mating cycle life of at least 500 cycles. However, the actual cycle life may vary depending on the specific application, mating forces, and environmental conditions.
