T821114A1S100CEU - Amphenol

Description: Wire-To-Board Connector, Vertical, T821 Series, Through Hole, Header, 14, 2.54 mm RoHS Compliant: Yes

Download T821114A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821114A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

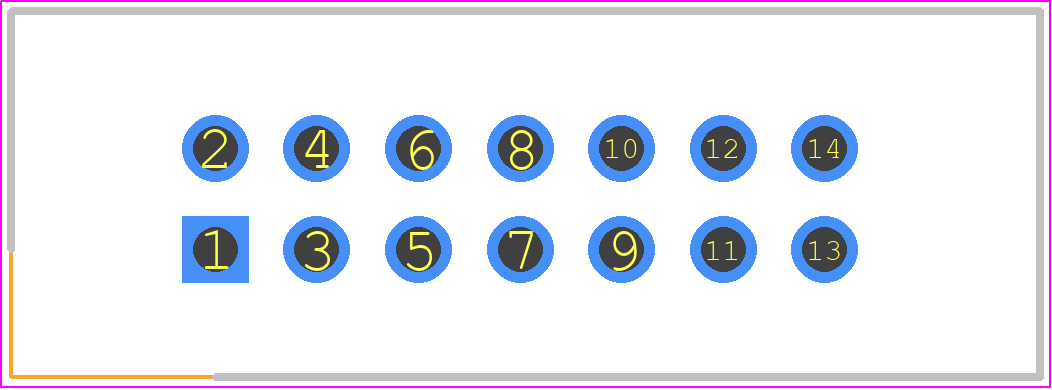

T821114A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821114A1S100CEU
click to zoom
3D Models
T821114A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821114A1S100CEU
click to zoom

T821114A1S100CEU Details

  • Manufacturer Part Number:

    T821114A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

T821114A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the T821114A1S100CEU is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing.
  • The operating temperature range for the T821114A1S100CEU is -65°C to 200°C (-85°F to 392°F). However, it's essential to consider the specific application requirements and potential derating factors.
  • Yes, the T821114A1S100CEU is designed to operate in harsh environments. It features a rugged construction and is resistant to corrosion, humidity, and exposure to chemicals. However, it's crucial to consult the specific application requirements and follow the manufacturer's guidelines.
  • The T821114A1S100CEU has a mating cycle life of at least 500 cycles. However, this may vary depending on the specific application, usage, and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821114A1S100CEU Overview

Use the download button to access the T821114A1S100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
