- Part Number T821120A1R100CEU
- Manufacturer Amphenol
- Pin Count 20
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box

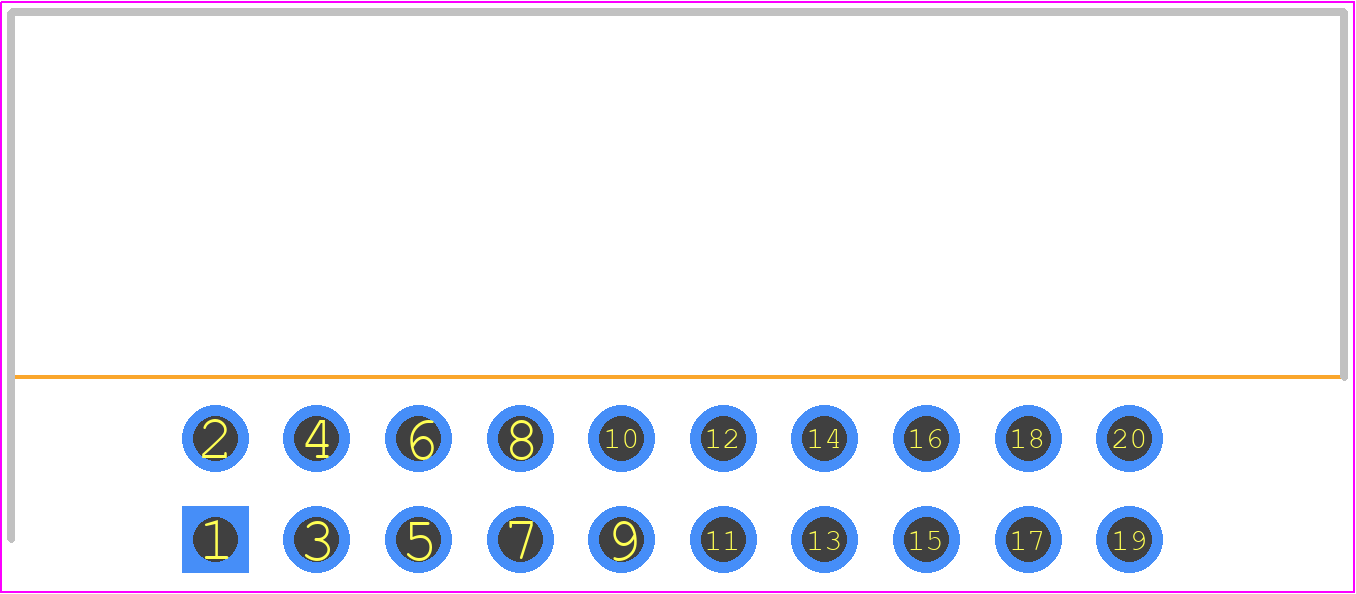

- Footprint Name Header, Shrouded - Right Angle PTH Box - T821120A1R100CEU
- Released Date Jan 13, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
T821120A1R100CEU Details
-
Manufacturer Part Number:
T821120A1R100CEU
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
10
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
T821120A1R100CEU Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
-
Yes, the T821120A1R100CEU is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
-
Yes, the T821120A1R100CEU has a IP67 rating, which means it is protected against dust and water ingress. It can be used in outdoor applications, but it's essential to ensure proper sealing and protection of the connector and cables.
-
The T821120A1R100CEU has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the T821120A1R100CEU has a flexible design that allows it to accommodate cables of different sizes. However, it's essential to ensure that the cable size is within the recommended range specified in the datasheet to ensure proper connection and performance.
