Part Image

T821124A1R100CEU - Amphenol

Description: Amphenol T821 Series, 2.54mm Pitch 24 Way 2 Row Right Angle PCB Header, Solder Termination, 3A

Download T821124A1R100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821124A1R100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

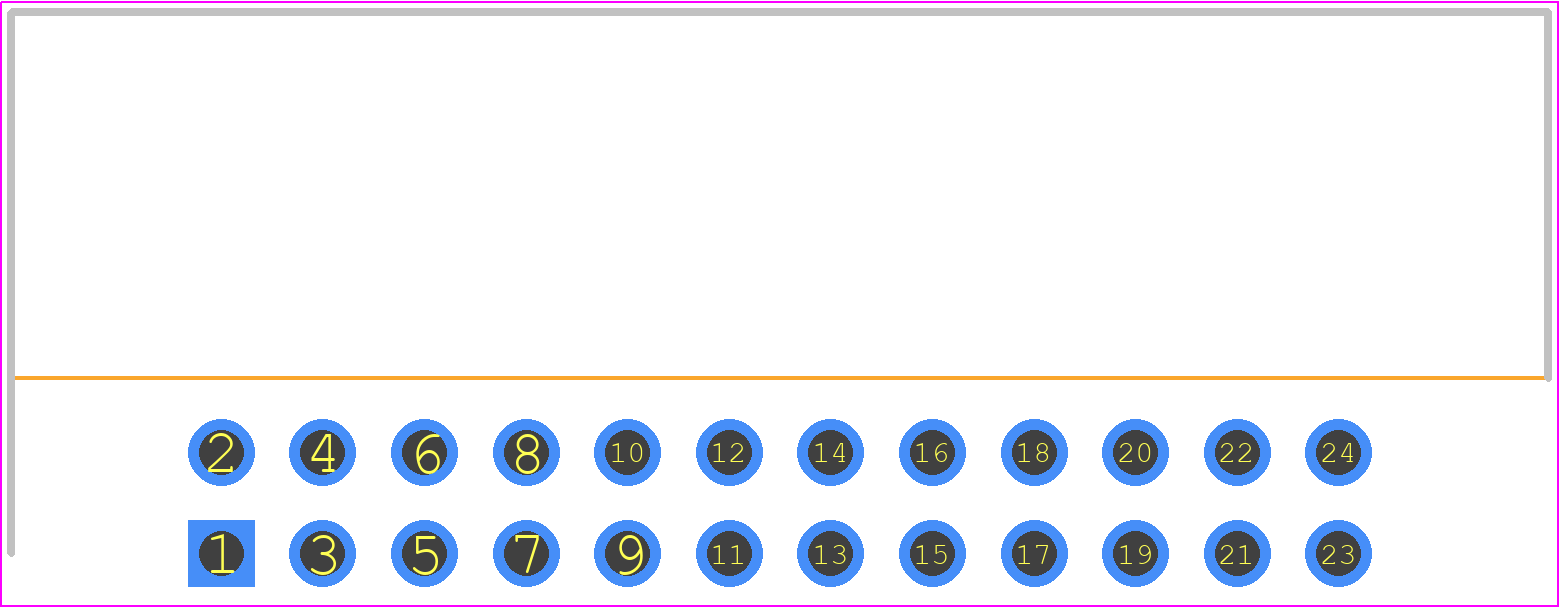

T821124A1R100CEU - Amphenol PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - T821124A1R100CEU
click to zoom
3D Models
T821124A1R100CEU - Amphenol - 3D model - Header, Shrouded - Right Angle PTH Box - T821124A1R100CEU
click to zoom

T821124A1R100CEU Details

  • Manufacturer Part Number:

    T821124A1R100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

T821124A1R100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
  • Yes, the T821124A1R100CEU is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2-200 Hz.
  • Yes, the T821124A1R100CEU is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, including immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
  • The operating temperature range for the T821124A1R100CEU is -40°C to +125°C (-40°F to +257°F). However, it's essential to note that the temperature range may vary depending on the specific application and the materials used.
  • It's not recommended to use a different wire gauge than specified in the datasheet. The connector is designed to work with specific wire gauges, and using a different gauge may affect the connector's performance, reliability, and safety. If you need to use a different wire gauge, consult with the manufacturer or a qualified engineer.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T821124A1R100CEU Overview

Use the download button to access the T821124A1R100CEU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T8211, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
