T821126A1S100CEU - Amphenol

Description: HEADER, VERTICAL, 2.54MM, 26WAY Amphenol T821 Series, 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A

Download T821126A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821126A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

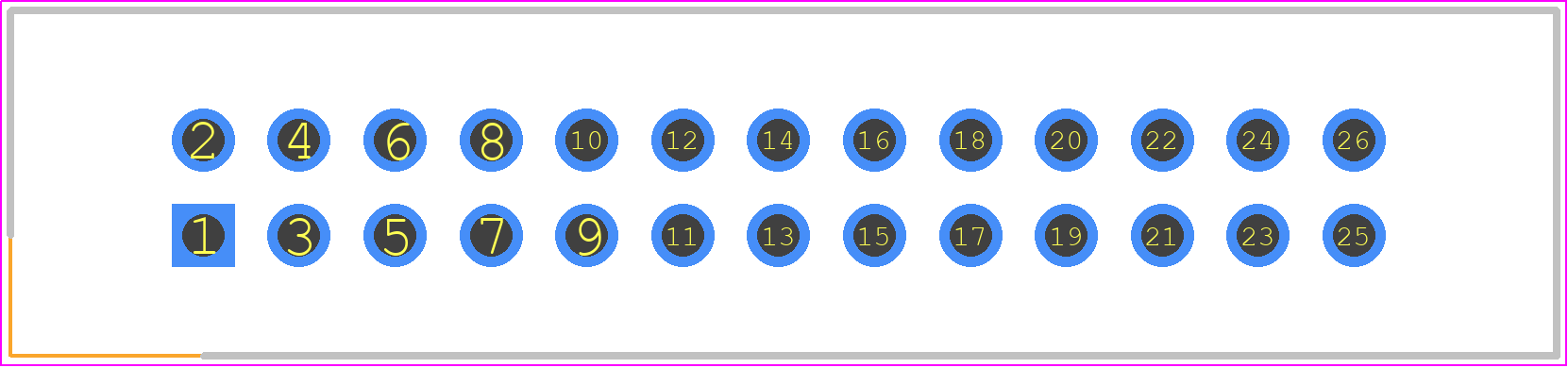

T821126A1S100CEU - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - T821126A1S100CEU
click to zoom
3D Models
T821126A1S100CEU - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - T821126A1S100CEU
click to zoom

T821126A1S100CEU Details

  • Manufacturer Part Number:

    T821126A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    10

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

T821126A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure proper connection and avoid damage.
  • Yes, the T821126A1S100CEU is designed to withstand high-vibration environments. The connector's rugged design and secure screw-locking mechanism ensure reliable connections even in harsh conditions. However, it's crucial to follow the recommended installation and mounting procedures to ensure optimal performance.
  • Yes, the T821126A1S100CEU is designed for outdoor and harsh environmental applications. The connector's IP67 rating ensures protection against dust and water ingress, making it suitable for use in challenging environments. However, it's essential to follow the recommended installation and sealing procedures to maintain the connector's environmental rating.
  • The T821126A1S100CEU has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consult the specific application requirements and ensure the connector is used within the recommended temperature range to maintain optimal performance and reliability.
  • The T821126A1S100CEU is designed to be compatible with other mating connectors from Amphenol Corporation. However, compatibility with connectors from other manufacturers is not guaranteed. It's recommended to consult the specific application requirements and ensure compatibility before using connectors from different manufacturers.
