T821130A1S100CEU - Amphenol

Description: HEADER, VERTICAL, 2.54MM, 30WAY Amphenol T821 Series, 2.54mm Pitch 30 Way 2 Row Straight PCB Header, Solder Termination, 3A

Download T821130A1S100CEU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T821130A1S100CEU - Amphenol - PCB symbol
click to zoom
PCB Footprints

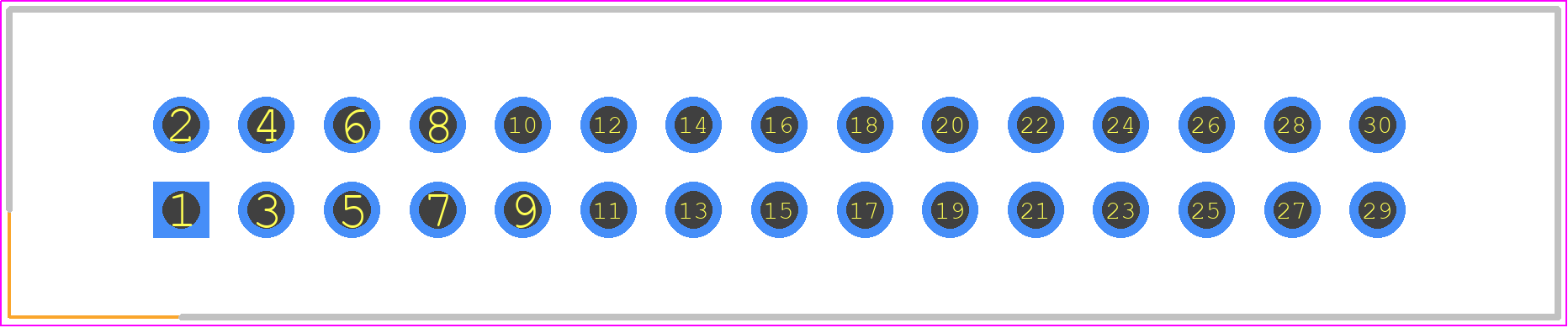

T821130A1S100CEU - Amphenol PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - T821130A1S100CEU
click to zoom
3D Models
T821130A1S100CEU - Amphenol - 3D model - Header, Receptacle - Straight PTH Box - T821130A1S100CEU
click to zoom

T821130A1S100CEU Details

  • Manufacturer Part Number:

    T821130A1S100CEU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

T821130A1S100CEU Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads on the T821130A1S100CEU connector, as specified by Amphenol Corporation.
  • Yes, the T821130A1S100CEU connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, and 3 axes, as per Amphenol's specifications.
  • Yes, the T821130A1S100CEU connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity rating of 95% RH, making it suitable for use in demanding applications.
  • The T821130A1S100CEU connector has a mating cycle life of 500 cycles, as specified by Amphenol Corporation, ensuring reliable connections over an extended period.
  • Yes, the T821130A1S100CEU connector is designed to support high-speed data transmission, with a bandwidth of up to 10 Gbps, making it suitable for use in high-speed applications.
