T90N5D12-5 - TE Connectivity

Description: General Purpose Relays SPDT PCB 5 VDC

Download T90N5D12-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
T90N5D12-5 - TE Connectivity - PCB symbol
click to zoom

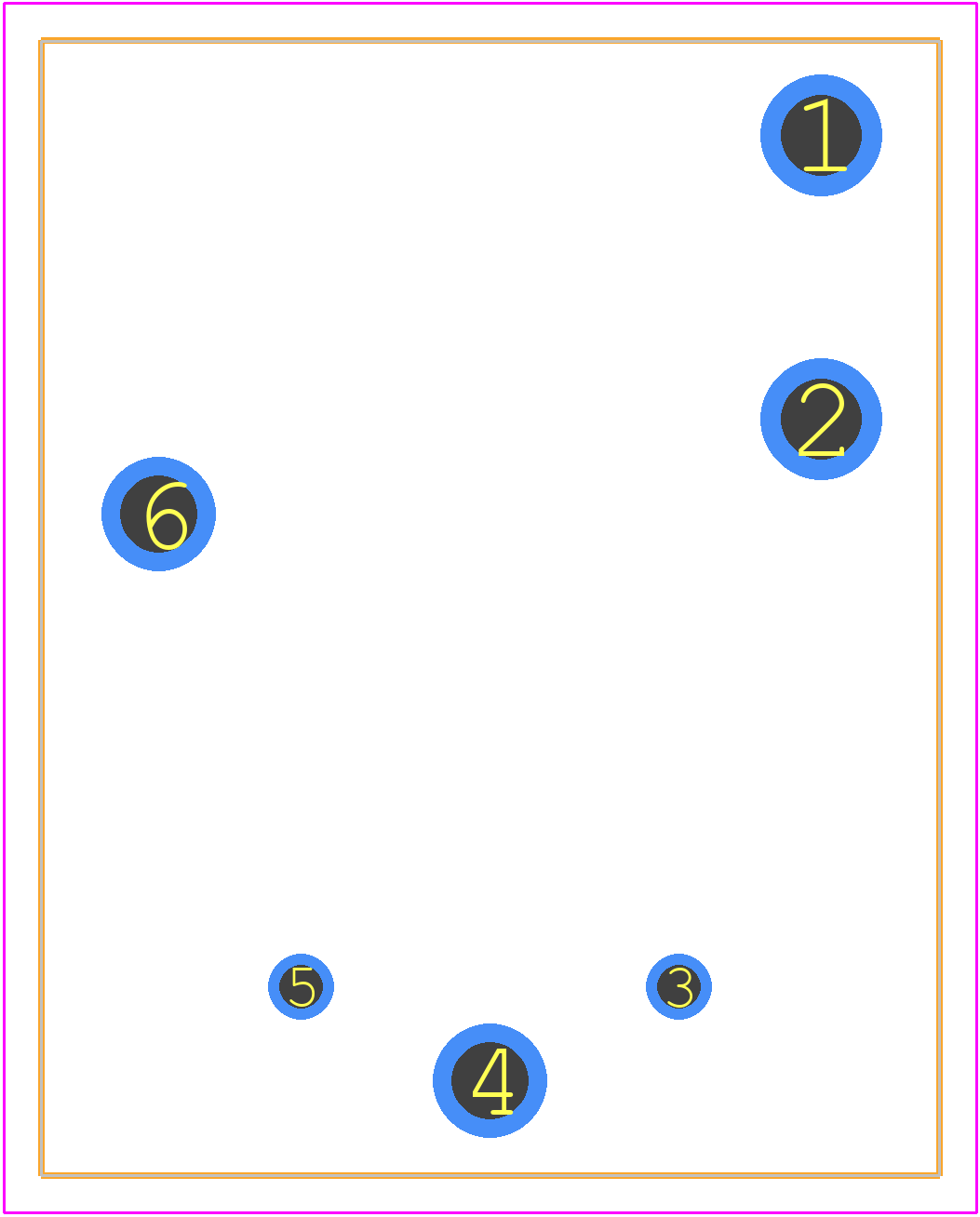

PCB Footprints
T90N5D12-5 - TE Connectivity PCB footprint - Other - Other - T90N5D12-5-2
click to zoom
3D Models
T90N5D12-5 - TE Connectivity - 3D model - Other - T90N5D12-5-2
click to zoom

T90N5D12-5 Details

  • Manufacturer Part Number:

    T90N5D12-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    24.1 mm

  • Body Height:

    16.9 mm

  • Body Length or Diameter:

    30.5 mm

  • Coil Current(DC)-Max:

    0.15 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    40 Ω

  • Coil Voltage(DC)-Max:

    6 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    20 A

  • Contact Current(DC)-Max:

    20 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Physical Dimension:

    30.5mm x 24.1mm x 16.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

T90N5D12-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the T90N5D12-5 connector, as specified in the TE Connectivity application notes.
  • Yes, the T90N5D12-5 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, and 3 axes, as per the IEC 61373 standard.
  • Yes, the T90N5D12-5 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and a humidity rating of 95% RH at 40°C, as per the IEC 60512-2 standard.
  • The T90N5D12-5 connector has a mating cycle life of 500 cycles, as specified in the TE Connectivity datasheet.
  • Yes, the T90N5D12-5 connector is designed to be compatible with other TE Connectivity products, such as the T90N5D12-5R receptacle and the T90N5D12-5P plug, as well as other TE Connectivity connectors and cables.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

T90N5D12-5 Overview

Use the download button to access the T90N5D12-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T90N5, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
