- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for T92HP7D1X-12
- Part Number T92HP7D1X-12
- Manufacturer TE Connectivity
- Pin Count 12
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - T92HP7D1X-12-2
- Released Date Apr 15, 2021
- Last Modified Date Oct 1, 2024 10:17 AM UTC
- Pinout / Pin List Click Here (Member Only)
T92HP7D1X-12 Details
-
Manufacturer Part Number:
T92HP7D1X-12
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
6
-
Relay Type:
POWER/SIGNAL RELAY
T92HP7D1X-12 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
Yes, the T92HP7D1X-12 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
-
The operating temperature range for the T92HP7D1X-12 is -40°C to 125°C, making it suitable for use in a wide range of applications.
-
Yes, the T92HP7D1X-12 is UL recognized and meets the requirements of UL 1977 and UL 498A.
-
The T92HP7D1X-12 has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
Trust Checks
Community Provided
System Verified
Community Approved
T92HP7D1X-12 Overview

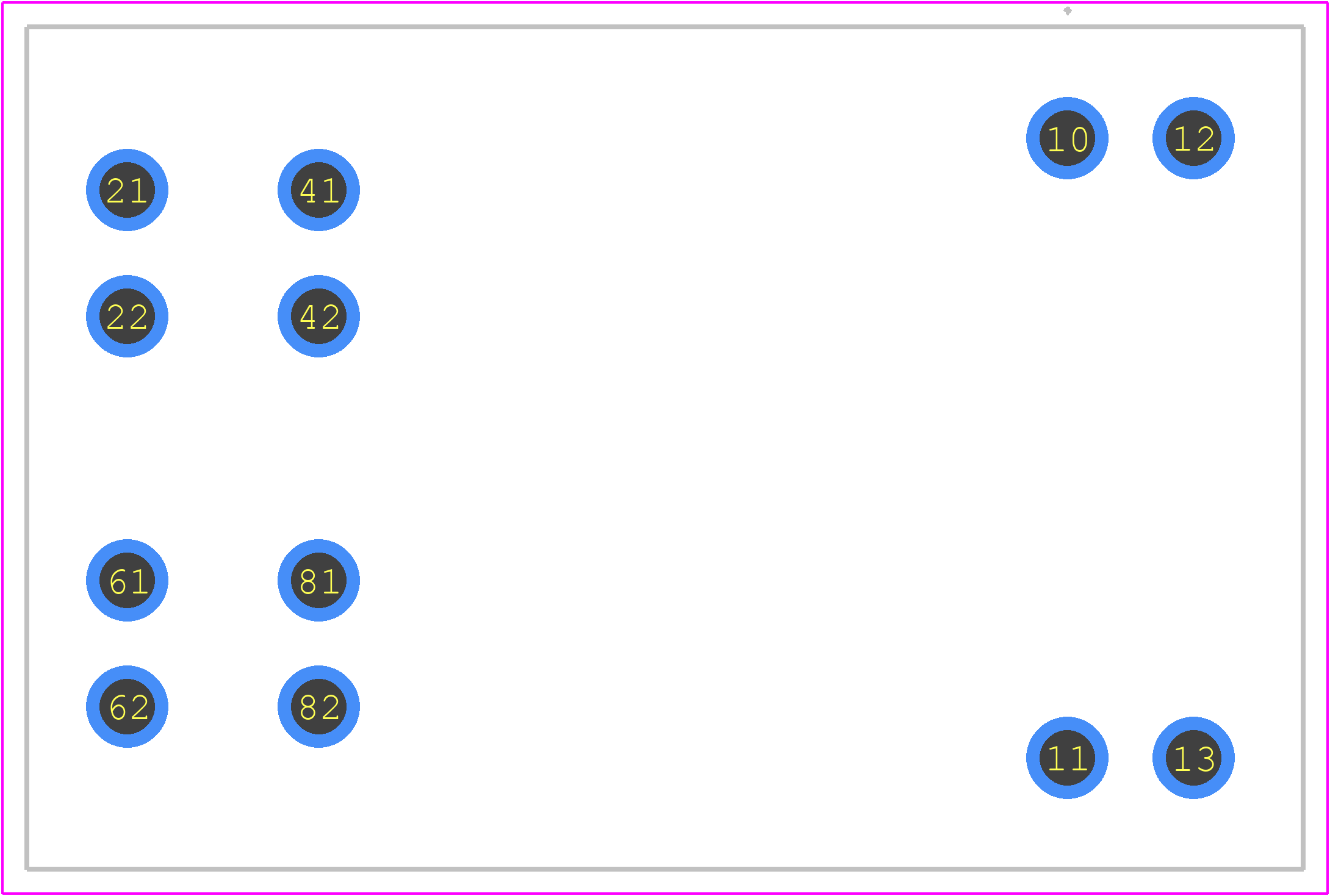

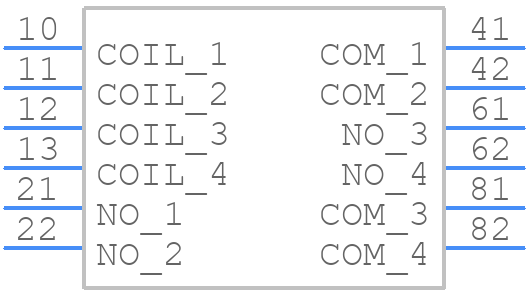

Use the download button to access the T92HP7D1X-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like T92HP,
or try a keyword search, such as Power/Signal Relays
