T92S11D12-24 - TE Connectivity

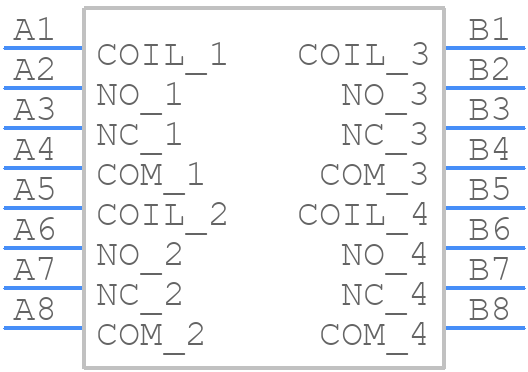

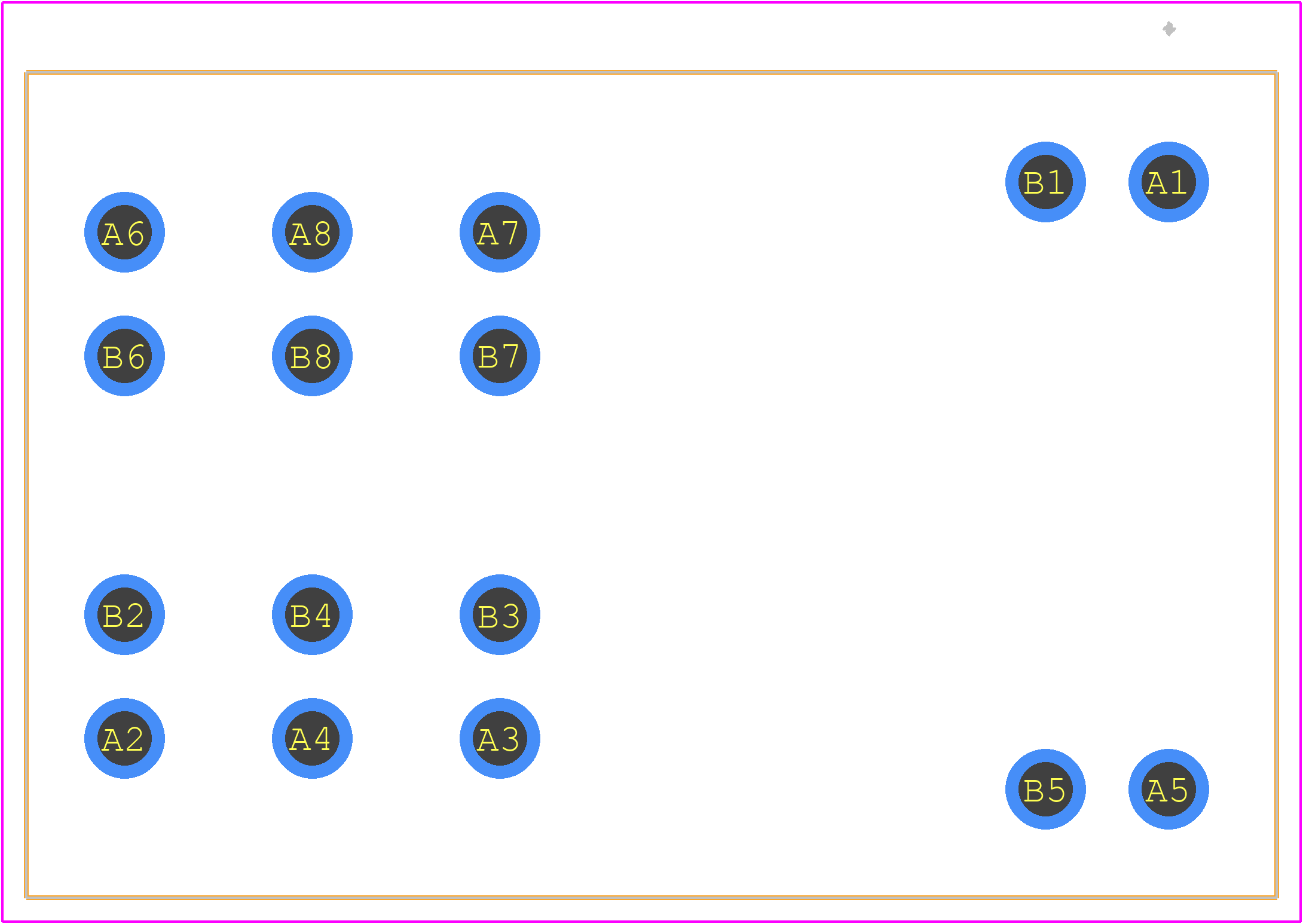

T92S11D12-24 Details

• Manufacturer Part Number:

  T92S11D12-24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.88

• Body Breadth:

  34.54 mm

• Body Height:

  30.73 mm

• Body Length or Diameter:

  52.32 mm

• Coil Current(AC)-Max:

  0.071 A

• Coil Current(DC)-Max:

  0.071 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  1700 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  350 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  30A@277VAC

• Contact Current(AC)-Max:

  30 A

• Contact Current(DC)-Max:

  30 A

• Contact (DC) Max Rating R Load:

  30A@28VDC

• Contact Voltage(AC)-Max:

  600 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Dielectric Strength Between Coil and Contacts:

  4000 Vrms

• Dielectric Strength Between Open Contacts:

  1500 Vrms

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER CADMIUM OXIDE

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  25 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  BOX; TRAY

• Physical Dimension:

  52.3mm x 34.5mm x 30.7mm

• Reference Standard:

  CSA; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  25 ms

• Sealing:

  SEALED TYPE

• Surface Mount:

  NO

• Termination Type:

  SOLDER/QUICK CONNECT

• Weight:

  86 g
