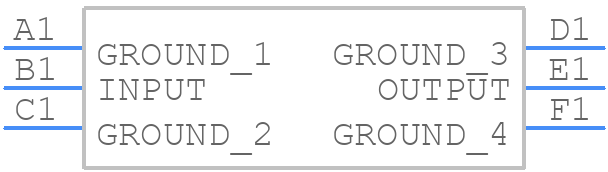

TA0224A - TAI-SAW Technology

TA0224A Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the TA0224A?
  The recommended PCB layout for the TA0224A involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
• How do I ensure the TA0224A is properly thermally managed?
  To ensure proper thermal management, the TA0224A should be mounted on a heat sink with a thermal conductivity of at least 1 W/m-K. The heat sink should be attached using a thermal interface material with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the device.
• What is the maximum allowed voltage on the enable pin (EN) of the TA0224A?
  The maximum allowed voltage on the enable pin (EN) of the TA0224A is 6V. Exceeding this voltage may damage the device.
• Can the TA0224A be used in a high-temperature environment?
  The TA0224A is rated for operation up to 85°C. However, for reliable operation, it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
• How do I troubleshoot issues with the TA0224A, such as output voltage instability or overheating?
  To troubleshoot issues with the TA0224A, start by verifying the input voltage, output current, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
