The recommended PCB layout involves placing the device on a 4-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output traces separate. A heat sink or thermal pad can be added to improve thermal management.
To ensure proper biasing, follow the recommended voltage and current settings in the datasheet. Additionally, use a low-noise power supply, and consider adding a voltage regulator and filter capacitors to minimize noise and ripple.
The TA0289A is commonly used in wireless communication systems, such as Wi-Fi, Bluetooth, and cellular networks, as well as in satellite communication, radar systems, and microwave devices.
The TA0289A has built-in ESD protection diodes and can withstand input overvoltage up to a certain level (specified in the datasheet). However, it's still recommended to add external protection circuits, such as TVS diodes or voltage limiters, to ensure robustness against extreme voltage spikes.
The TA0289A operates from -40°C to 85°C, with optimal performance between 0°C to 50°C. Temperature affects the device's gain, noise figure, and linearity, so it's essential to consider temperature compensation and thermal management in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TA0289A Overview

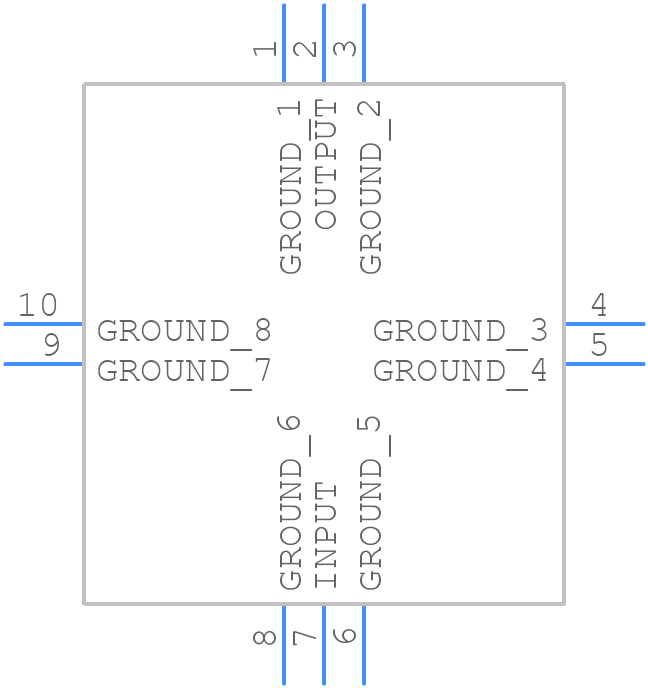

Use the download button to access the TA0289A schematic symbol, PCB footprint, and 3D model.
