The recommended PCB layout for the TA0795A involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure proper cooling, the TA0795A should be mounted on a heat sink with a thermal conductivity of at least 1 W/m-K. The heat sink should be attached using a thermal interface material with a thermal conductivity of at least 5 W/m-K. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
The maximum allowed voltage on the enable pin (EN) of the TA0795A is 6V. Exceeding this voltage may damage the device. It is recommended to use a voltage limiter or a voltage divider to ensure the enable pin voltage does not exceed 6V.
The TA0795A is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If operation above 85°C is required, it is recommended to consult with Tai-Saw Technology Co Ltd or a qualified thermal engineer to ensure the device can operate safely and reliably in the intended environment.
To troubleshoot issues with the TA0795A, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues. If the problem persists, contact Tai-Saw Technology Co Ltd or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TA0795A Overview

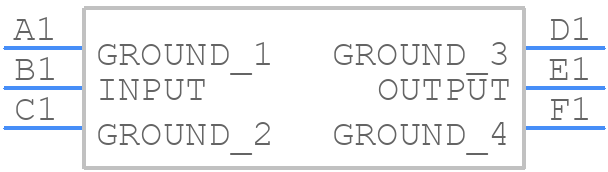

Use the download button to access the TA0795A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TA079,
or try a keyword search, such as SAW Filters
