TA1267A - TAI-SAW Technology

Description: 1.588655GHz Frequency RF SAW Filter (Surface Acoustic Wave) 1.7dB Bandwidth 5-SMD, No Lead

Download TA1267A Model

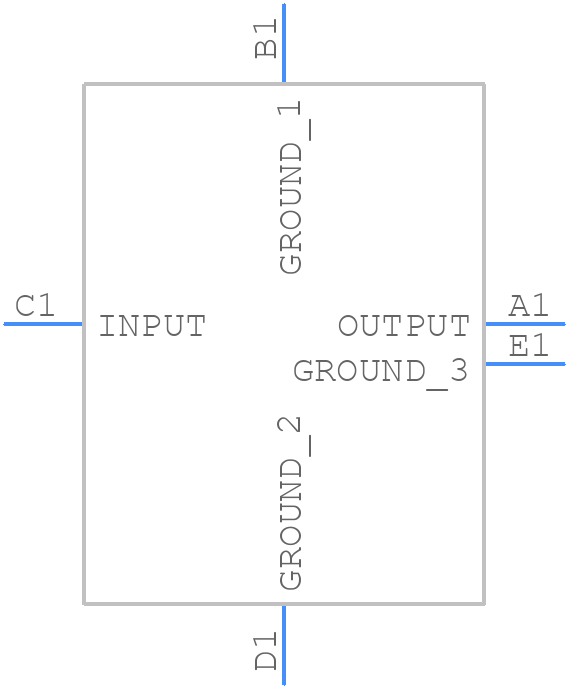

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TA1267A - TAI-SAW Technology PCB footprint - Other - Other - TA1267A-2
click to zoom
3D Models
TA1267A - TAI-SAW Technology  - 3D model - Other - TA1267A-2
click to zoom

TA1267A Details

  • Manufacturer Part Number:

    TA1267A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 5 PIN

  • Country Of Origin:

    Mainland China, Taiwan

  • Manufacturer:

    Tai-Saw Technology Co Ltd

  • YTEOL:

    9.4

  • Center or Cutoff Frequency (fo/fc):

    1588.655 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    0.7 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2.5 dB

  • Length:

    1.4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TR, 7 INCH

  • Width:

    1.1 mm

TA1267A Frequently Asked Questions (FAQs)

  • A good PCB layout for the TA1267A should ensure that the input and output pins are separated, with the input pins connected to a quiet analog ground and the output pins connected to a digital ground. Additionally, decoupling capacitors should be placed close to the device to reduce noise and improve stability.
  • The choice of external components, such as resistors and capacitors, depends on the specific application and operating conditions. Generally, it's recommended to use low-ESR capacitors and resistors with low tolerance values to ensure stable operation. The datasheet provides some guidance on component selection, but additional simulation and testing may be necessary to optimize performance.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance by 1% for every 1°C above 70°C to ensure reliable operation.
  • Common issues with the TA1267A can often be attributed to poor PCB layout, incorrect component selection, or inadequate decoupling. To troubleshoot, start by verifying the PCB layout and component selection, then check for proper decoupling and grounding. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Yes, the TA1267A is a high-frequency device, and proper EMI/EMC design considerations are essential to ensure reliable operation. This includes using shielding, filtering, and proper grounding techniques to minimize electromagnetic interference and radiation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TA1267A Overview

Use the download button to access the TA1267A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TA126, or try a keyword search, such as SAW Filters
