TA1303AFN - America Electronic Components

Description: MIXER/OSCILLATOR BUILT-IN FREQUENCY SYNTHSIZER FOR VHF, CATV AND UHF BAND

Download TA1303AFN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TA1303AFN model

Email notifications will be applied after download.

Send part feedback

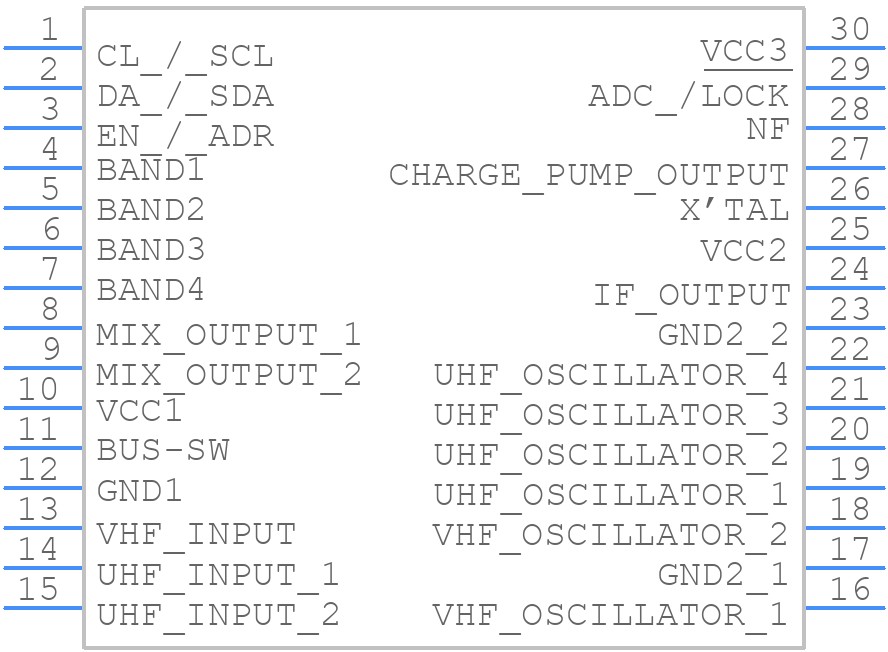

Symbol

TA1303AFN - America Electronic Components - PCB symbol

PCB Footprints

TA1303AFN - America Electronic Components PCB footprint - Small Outline Packages - Small Outline Packages - SSOP30-P-300-0.65

3D Models

TA1303AFN - America Electronic Components - 3D model - Small Outline Packages - SSOP30-P-300-0.65

Datasheet Download Datasheet
Stock & Prices Price & Stock for TA1303AFN
Part Number TA1303AFN
Manufacturer America Electronic Components
Pin Count 30
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP30-P-300-0.65
Released Date Jun 7, 2024
Last Modified Date Jun 7, 2024 4:29 AM UTC
Pinout / Pin List Click Here (Member Only)

TA1303AFN Details

Manufacturer Part Number:
TA1303AFN
Manufacturer:
American Electronic Components Inc

Trust Checks

Community Provided

System Verified

Community Approved

TA1303AFN Overview

Use the download button to access the TA1303AFN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TA130, or try a keyword search, such as Tuner ICs
