TA1561A - TAI-SAW Technology

Description: The TA1561A is a high perromance, full band ISM band, filter designed for the North American unlicensed band, offering good Insertion Loss and very low Group Delay Variation across the frequency range 902MHz to 918MHz. With 35dB of isolation achieved at just 19.5MHz offset on the low side, this device offers the engineer excellent suppression of unwanted band 5 and band 26 interference.

Download TA1561A Model
Schematic

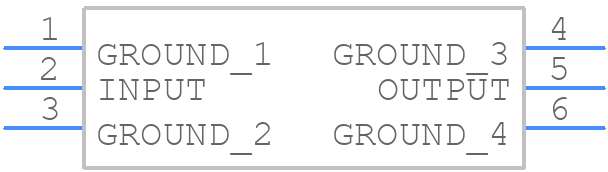

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TA1561A - TAI-SAW Technology PCB footprint - Other - Other - TA1561A-2
click to zoom
3D Models
TA1561A - TAI-SAW Technology  - 3D model - Other - TA1561A-2
click to zoom

TA1561A Details

  • Manufacturer Part Number:

    TA1561A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 6 PIN

  • Country Of Origin:

    Mainland China, Taiwan

  • Manufacturer:

    Tai-Saw Technology Co Ltd

  • YTEOL:

    8.68

  • Additional Feature:

    TAPE AND REEL

  • Center or Cutoff Frequency (fo/fc):

    915 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    1.4 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    4 dB

  • Length:

    3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Width:

    3 mm
