TA31136FN - Toshiba

Description: RF and Baseband Circuit, PDSO16

Download TA31136FN Model

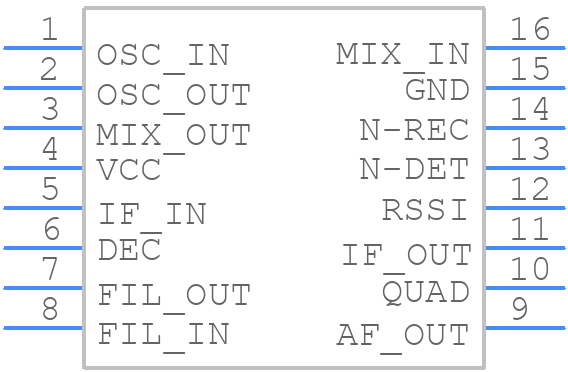

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TA31136FN - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP16-P-225-0.65B
click to zoom
3D Models
TA31136FN - Toshiba  - 3D model - Small Outline Packages - SSOP16-P-225-0.65B
click to zoom

TA31136FN Details

  • Manufacturer Part Number:

    TA31136FN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.225 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    4.6 mA

  • Supply Voltage-Nom:

    2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    CORDLESS TELEPHONE RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TA31136FN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • The TA31136FN requires a bias voltage of 1.8V to 5.5V. Ensure the bias voltage is stable and noise-free, and that the bias pin is decoupled with a 10nF capacitor to ground.
  • The maximum power dissipation of the TA31136FN is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • The TA31136FN is rated for operation up to 85°C. However, for reliable operation, it's recommended to derate the power dissipation by 1.5mW/°C above 25°C.
  • Check the power supply voltage, bias voltage, and input/output connections. Verify that the device is properly biased and that the input signals are within the recommended range. Use an oscilloscope to check for signal integrity and noise.
