TA7630P footprint, schematic symbol and 3D model by Toshiba

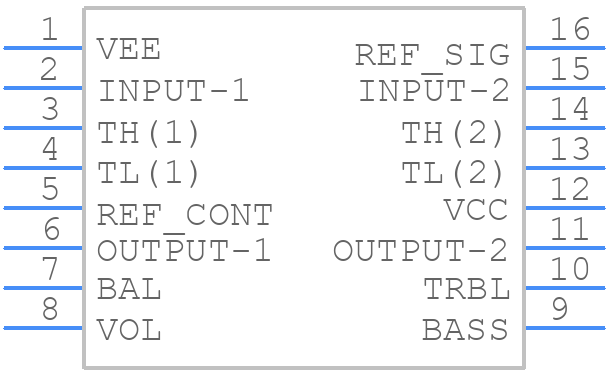

Symbol

click to zoom

PCB Footprints

TA7630P - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP_16

click to zoom

3D Models

TA7630P - Toshiba - 3D model - Dual-In-Line Packages - DIP_16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TA7630P
Part Number TA7630P
Manufacturer Toshiba
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP_16
Released Date Nov 25, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TA7630P Details

Manufacturer Part Number:
TA7630P
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
DIP-16
Pin Count:
16
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
CAN ALSO OPERATE WITH SINGLE 8V TO 14V POWER SUPPLY
Channel Separation:
70 dB
Consumer IC Type:
TONE CONTROL CIRCUIT
Harmonic Distortion:
0.1%
JESD-30 Code:
R-PDIP-T16
Length:
19.25 mm
Number of Bands:
2
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
4.45 mm
Supply Current-Max:
25 mA
Supply Voltage-Max (Vsup):
7 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL EXTENDED
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
7.62 mm

TA7630P Frequently Asked Questions (FAQs)

Toshiba recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the VCC and VEE supplies. Additionally, keep the input and output traces short and away from each other to minimize noise and coupling.
To ensure low distortion operation, set the quiescent current (Iq) to the recommended value of 1.5mA. This can be achieved by adjusting the voltage at the VREF pin and the resistance of the emitter degeneration resistors (R1 and R2).
The maximum power dissipation of the TA7630P is 1.5W. However, this value can be derated based on the ambient temperature and the thermal resistance of the PCB and heat sink. Consult the datasheet for more information on thermal derating.
Yes, the TA7630P can be used in a single-supply configuration. However, this requires additional circuitry to generate a negative supply voltage (VEE) from the positive supply voltage (VCC). Consult the datasheet for more information on single-supply operation.
The recommended input and output coupling capacitor value is 10uF to 22uF. However, the optimal value may vary depending on the specific application and frequency range. Consult the datasheet for more information on capacitor selection.
