A good PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the IC, and to use thermal vias to dissipate heat to the other side of the board. Additionally, keeping the components away from the IC and using a solid ground plane can help reduce thermal resistance.
To ensure the output voltage is stable and regulated, make sure to use the recommended input and output capacitors, and to decouple the input voltage with a capacitor. Also, ensure that the input voltage is within the recommended range and that the output current is within the maximum rating.
The maximum ambient temperature for reliable operation is 85°C, but it's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation.
Yes, the TA78L12F is a high-reliability regulator, but it's recommended to follow the recommended operating conditions, and to perform thorough testing and validation to ensure the regulator meets the specific requirements of the application.
To protect the regulator from input voltage surges and spikes, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp at the input, and ensure that the input capacitor is rated for the maximum input voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TA78L12F(TE12L,F) Overview

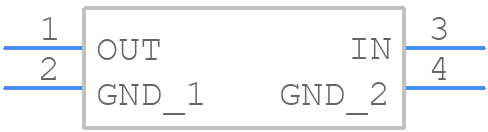

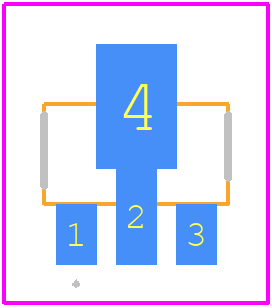

Use the download button to access the TA78L12F(TE12L,F) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TA78L,
or try a keyword search, such as Linear Regulator ICs
