TAJC156K025HNJ - Kyocera AVX

Description: AVX Tantalum Moulded Capacitor 156 025V

Download TAJC156K025HNJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAJC156K025HNJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

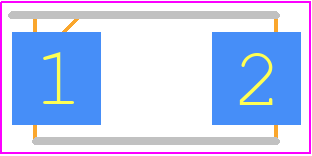

TAJC156K025HNJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C
click to zoom
3D Models
TAJC156K025HNJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C
click to zoom

TAJC156K025HNJ Details

  • Manufacturer Part Number:

    TAJC156K025HNJ

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    5

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    15 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1600 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.0038 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    105 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TAJC156K025HNJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TAJC156K025HNJ can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • The TAJC156K025HNJ capacitor is designed to handle high-frequency noise and ripple due to its low equivalent series resistance (ESR) and high resonance frequency. The capacitor's internal construction and materials are optimized to minimize the effects of high-frequency noise and ripple, making it suitable for use in high-frequency applications.
  • The TAJC156K025HNJ capacitor is rated for operation up to 125°C, making it suitable for use in high-temperature environments. However, it's essential to ensure that the capacitor is properly derated for temperature to prevent overheating and ensure reliable operation.
  • The TAJC156K025HNJ capacitor is designed to withstand moderate levels of vibration, but it's essential to ensure that the capacitor is properly secured and mounted to prevent mechanical stress and damage. Kyocera AVX Components provides vibration testing data and guidelines for mounting and securing the capacitor in high-vibration environments.
  • The typical lead time and availability for TAJC156K025HNJ capacitors vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors or Kyocera AVX Components' customer support for the most up-to-date information on lead times and availability.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAJC156K025HNJ Overview

Use the download button to access the TAJC156K025HNJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAJC1, or try a keyword search, such as Tantalum Capacitors
