TAJC226K016HNJ - Kyocera AVX

Description: AVX Tantalum Moulded Capacitor 226 016V

Download TAJC226K016HNJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAJC226K016HNJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

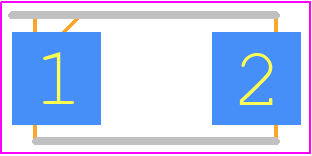

TAJC226K016HNJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C
click to zoom
3D Models
TAJC226K016HNJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C
click to zoom

TAJC226K016HNJ Details

  • Manufacturer Part Number:

    TAJC226K016HNJ

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 2312

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    5

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1000 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.0035 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    133 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TAJC226K016HNJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TAJC226K016HNJ can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • The ESR of TAJC226K016HNJ is typically specified in the datasheet. To handle ESR in your design, you can use impedance modeling tools or simulation software to account for the ESR's impact on your circuit's performance. You can also consider using ESR-reducing techniques, such as using multiple capacitors in parallel or adding a series resistor to reduce the ESR's effect.
  • The maximum operating temperature range for TAJC226K016HNJ is typically specified in the datasheet as -55°C to +125°C. However, it's essential to note that the capacitor's performance and reliability may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related information.
  • TAJC226K016HNJ is a surface-mount device, and its vibration resistance is typically specified in the datasheet. However, it's essential to consider the specific vibration requirements of your application and ensure that the capacitor is properly mounted and secured to withstand the expected vibration levels. You may also need to consult with Kyocera AVX Components' application engineers for specific guidance.
  • To ensure the reliability of TAJC226K016HNJ, follow the recommended application guidelines, including voltage derating, temperature derating, and proper PCB layout and design. Additionally, consider using design validation and testing methods, such as HALT (Highly Accelerated Life Testing) and HASS (Highly Accelerated Stress Screening), to identify and mitigate potential reliability risks.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAJC226K016HNJ Overview

Use the download button to access the TAJC226K016HNJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAJC2, or try a keyword search, such as Tantalum Capacitors
