TAP106M050BRW - Kyocera AVX

Description: Tantalum Capacitors - Solid Leaded 50V 10uF 20% ESR=1.6 Ohm

Download TAP106M050BRW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAP106M050BRW - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

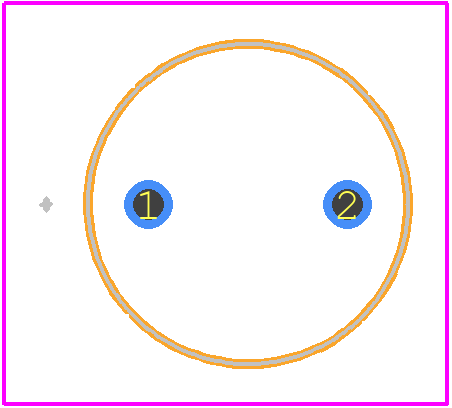

TAP106M050BRW - Kyocera AVX PCB footprint - Other - Other - TAP106M050BRW-2
click to zoom
3D Models
TAP106M050BRW - Kyocera AVX - 3D model - Other - TAP106M050BRW-2
click to zoom

TAP106M050BRW Details

  • Manufacturer Part Number:

    TAP106M050BRW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Capacitance:

    10 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1600 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.004 mA

  • Length:

    11.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TR, 14 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    CECC30201-032

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
