TAP226K035SRW - Kyocera AVX

Description: Cap Tant Solid 22uF 35V 10% (8.5 X 12.5mm) Radial 2.5mm 1.3 Ohm 125°C T/R

Download TAP226K035SRW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAP226K035SRW - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

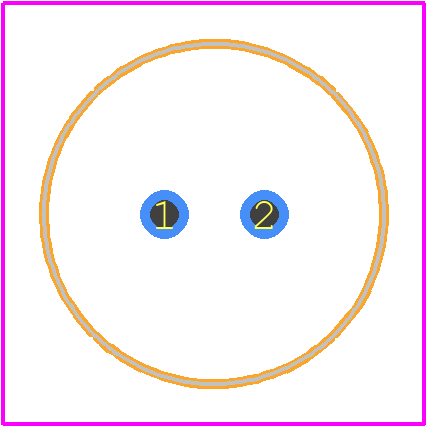

TAP226K035SRW - Kyocera AVX PCB footprint - Other - Other - TAP226K035SRW-2
click to zoom
3D Models
TAP226K035SRW - Kyocera AVX - 3D model - Other - TAP226K035SRW-2
click to zoom

TAP226K035SRW Details

  • Manufacturer Part Number:

    TAP226K035SRW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0061 mA

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    35 V

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

TAP226K035SRW Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TAP226K035SRW can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • To prevent damage during assembly, it is recommended to handle the TAP226K035SRW by the edges, avoiding touching the component's electrical contacts or ceramic body. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Additionally, follow the manufacturer's recommended assembly and soldering procedures.
  • While the datasheet specifies the rated operating temperature range, it's essential to note that the maximum operating temperature range for the TAP226K035SRW is -55°C to +125°C. However, it's recommended to derate the component's performance and reliability at extreme temperatures. Consult with the manufacturer or a qualified engineer for specific guidance.
  • The TAP226K035SRW is designed to withstand moderate vibration levels, but it's essential to evaluate the component's performance in your specific application. Consult with the manufacturer or a qualified engineer to determine the component's suitability for high-vibration environments and to discuss potential mitigation strategies.
  • To maintain the shelf life of the TAP226K035SRW, store the components in their original packaging or in a dry, cool place away from direct sunlight. Avoid exposing the components to moisture, extreme temperatures, or physical stress. Follow the manufacturer's recommended storage conditions and guidelines.
