TB401-1-4-E footprint, schematic symbol and 3D model by Alphaplus

Symbol

click to zoom

PCB Footprints

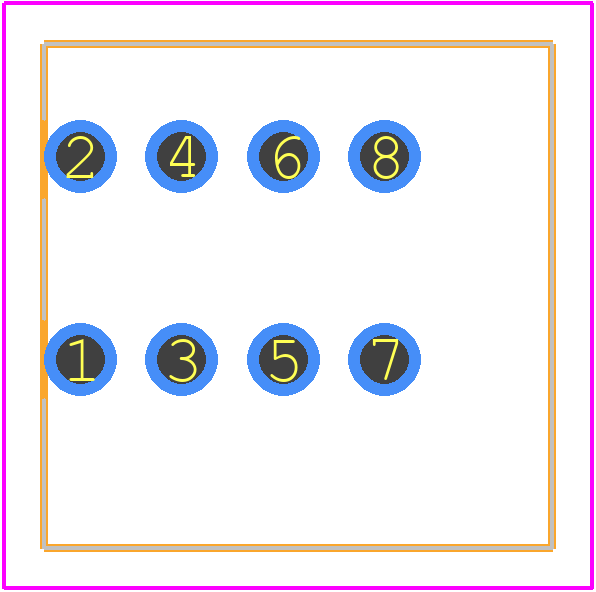

TB401-1-4-E - Alphaplus PCB footprint - Other - Other - TB401-1-4-E-1

click to zoom

3D Models

TB401-1-4-E - Alphaplus - 3D model - Other - TB401-1-4-E-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TB401-1-4-E
Part Number TB401-1-4-E
Manufacturer Alphaplus
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - TB401-1-4-E-1
Released Date May 23, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TB401-1-4-E Details

Manufacturer Part Number:
TB401-1-4-E
Manufacturer:
(UNAVAILABLE)

Trust Checks

Expert Contribution

System Verified

Community Approved

TB401-1-4-E Overview

Use the download button to access the TB401-1-4-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TB401, or try a keyword search, such as Bridge Rectifier Diodes
