TB522-100.0M footprint, schematic symbol and 3D model by Connor Winfield

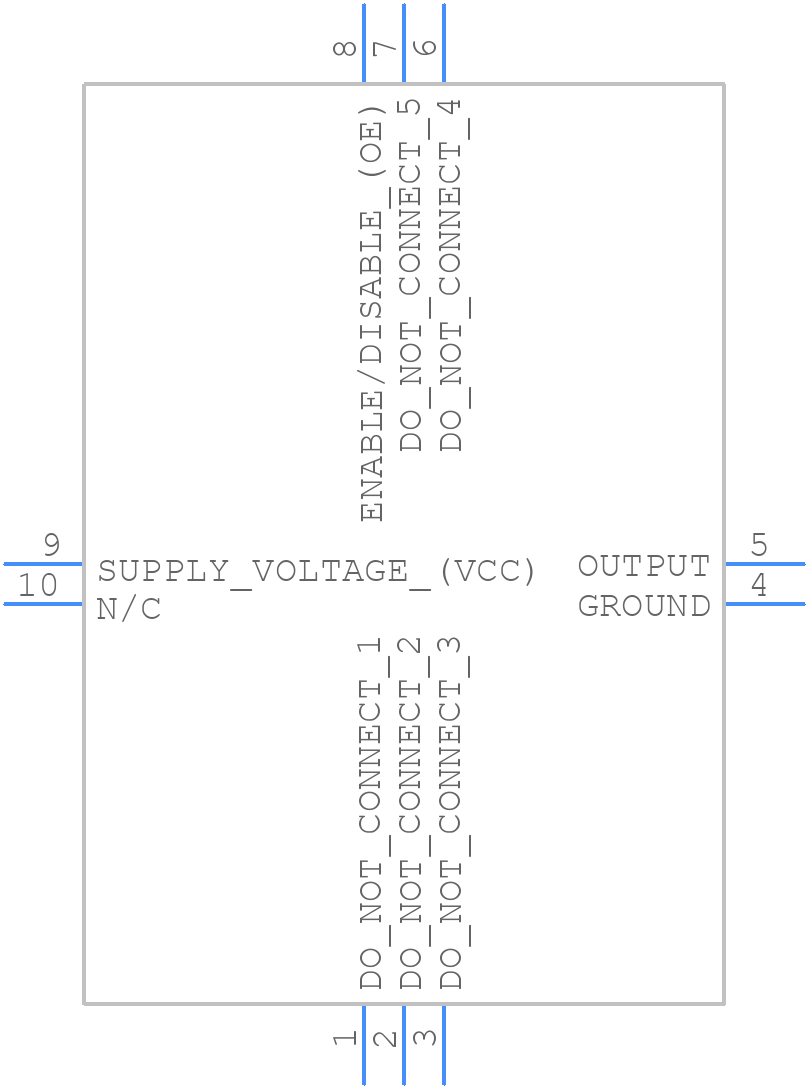

Symbol

PCB Footprints

3D Models

TB522-100.0M Details

The recommended operating temperature range for the TB522-100.0M is -40°C to +85°C.
To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 10uF capacitor and provide a stable voltage supply within the recommended operating range.
The typical power consumption of the TB522-100.0M is around 20mA, but this can vary depending on the specific application and operating conditions.
Yes, the TB522-100.0M is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure reliable operation.
To troubleshoot issues with the TB522-100.0M, check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Also, verify that the oscillator is properly soldered and mounted.

Expert Contribution

System Verified

Community Approved

Use the download button to access the TB522-100.0M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TB522, or try a keyword search, such as TCXO
