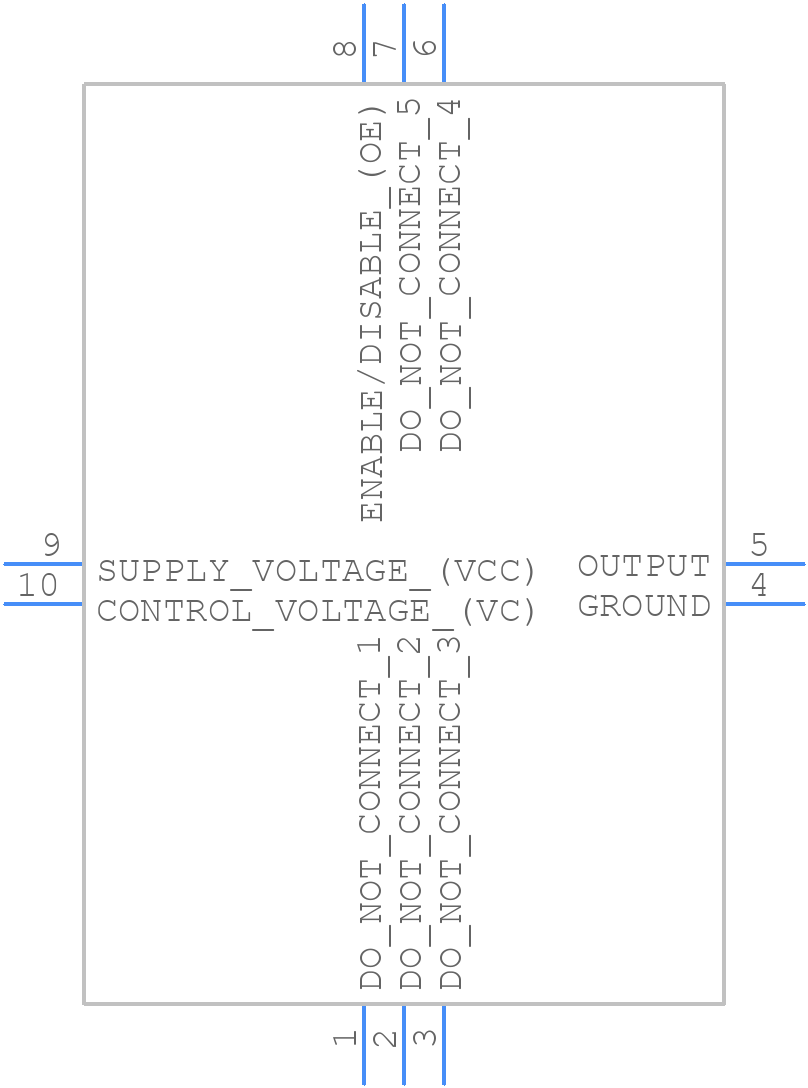

TB524-010.0M - Connor Winfield

TB524-010.0M Details

• Manufacturer Part Number:

  TB524-010.0M

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Manufacturer:

  Connor-Winfield

• YTEOL:

  5

• Control Voltage-Max:

  3 V

• Control Voltage-Min:

  0.3 V

• Frequency Deviation/Pullability:

  12 ppm

• Frequency Stability:

  1%

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  10

• Operating Frequency-Max:

  100 MHz

• Operating Frequency-Min:

  10 MHz

• Operating Frequency-Nom:

  10 MHz

• Operating Temperature-Max:

  70 °C

• Oscillator Type:

  LVCMOS

• Package Body Material:

  CERAMIC

• Package Equivalence Code:

  LCC10/12,.2X.28

• Physical Dimension:

  7.0mm x 5.0mm x 2.4mm

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  3.135 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Symmetry-Max:

  55/45 %
