TB602-050.0M - Connor Winfield

Description: 50 MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead , OSC TCXO 50.000MHZ LVCMOS SMD , 3.3V , 6mA , -40°C ~ 85°C

Download TB602-050.0M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

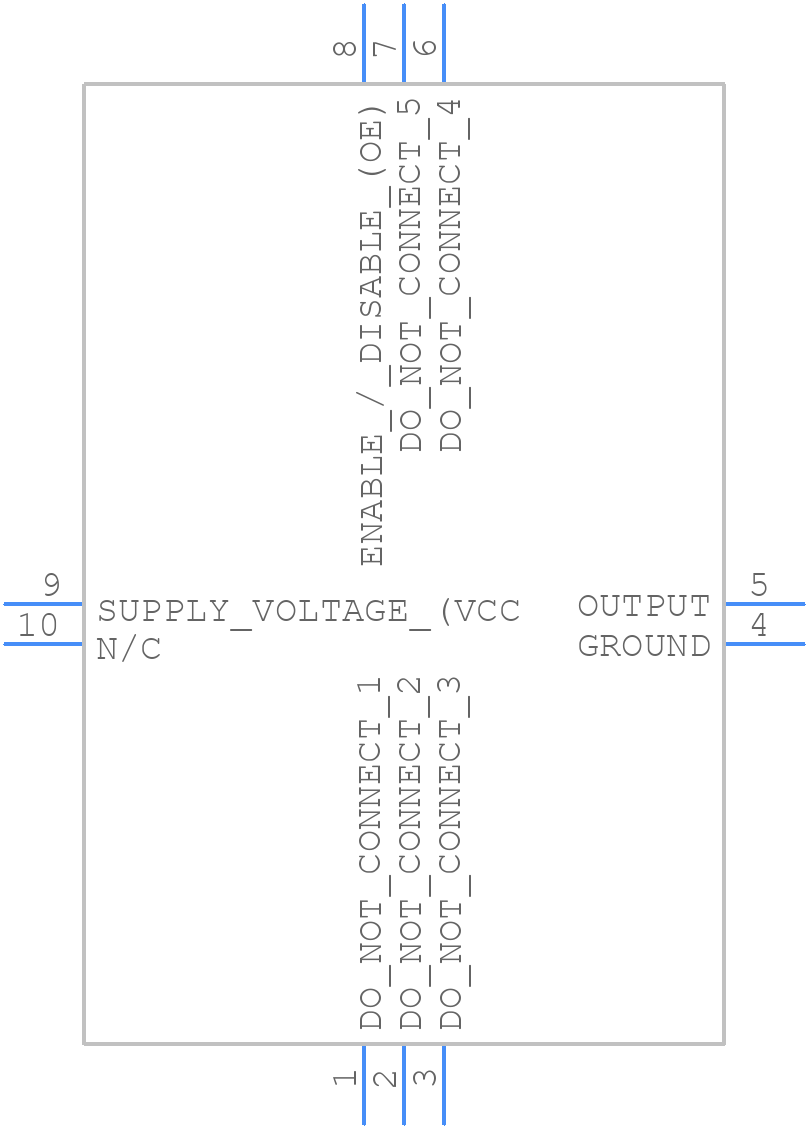

TB602-050.0M - Connor Winfield - PCB symbol
click to zoom
PCB Footprints
TB602-050.0M - Connor Winfield PCB footprint - Other - Other - TB602-050.0M-3
click to zoom

TB602-050.0M Details

  • Manufacturer Part Number:

    TB602-050.0M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Connor-Winfield

  • YTEOL:

    7

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Aging:

    0.04 PPM/DAY

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.28%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC/METAL

  • Package Equivalence Code:

    LCC10,.2X.28,100

  • Physical Dimension:

    7.0mm x 5.0mm x 2.67mm

  • Rise Time-Max:

    8 ns

  • Supply Current-Max:

    2.9 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) over Nickel (Ni)

TB602-050.0M Frequently Asked Questions (FAQs)

  • The recommended termination impedance is 50 ohms, which is a standard impedance for most RF and microwave applications.
  • To ensure proper biasing, connect the Vcc pin to a stable 5V power supply, and the Vee pin to a stable -5V power supply. Also, make sure to decouple the power supply lines with capacitors to minimize noise.
  • The maximum operating temperature range for the TB602-050.0M is -40°C to +85°C. Operating the oscillator outside this range may affect its performance and reliability.
  • While the TB602-050.0M is a rugged oscillator, it's still important to follow proper handling and storage procedures to prevent damage. Avoid exposing the oscillator to extreme temperatures, humidity, or physical stress.
  • To troubleshoot issues, start by verifying the power supply connections and ensuring the oscillator is properly biased. Check for any signs of physical damage or contamination. If the issue persists, consult the datasheet or contact Connor-Winfield's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB602-050.0M Overview

Use the download button to access the TB602-050.0M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TB602, or try a keyword search, such as TCXO
