TB622-100.0M - Connor Winfield

Description: 100 MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead

Download TB622-100.0M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

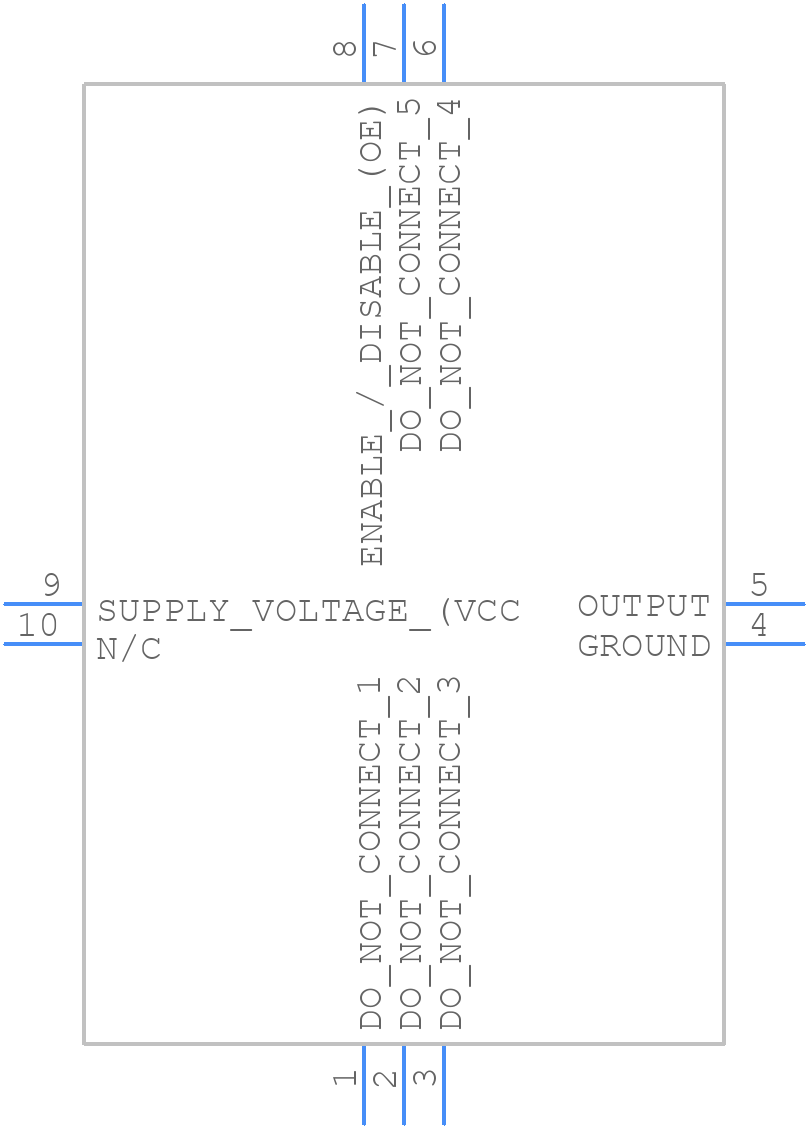

TB622-100.0M - Connor Winfield - PCB symbol
click to zoom
PCB Footprints
TB622-100.0M - Connor Winfield PCB footprint - Other - Other - TB622-100.0M
click to zoom
3D Models
TB622-100.0M - Connor Winfield - 3D model - Other - TB622-100.0M
click to zoom

TB622-100.0M Details

  • Manufacturer Part Number:

    TB622-100.0M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Connor-Winfield

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Aging:

    0.04 PPM/DAY

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC/METAL

  • Package Equivalence Code:

    LCC10,.2X.28,100

  • Physical Dimension:

    7.0mm x 5.0mm x 2.67mm

  • Rise Time-Max:

    8 ns

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    50/40 %

TB622-100.0M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TB622-100.0M is -40°C to +85°C.
  • To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 10uF capacitor and provide a stable voltage supply within the recommended operating range.
  • The typical power consumption of the TB622-100.0M is around 20mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the TB622-100.0M is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure reliable operation.
  • To troubleshoot issues with the TB622-100.0M, check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Also, verify that the oscillator is properly soldered and mounted.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB622-100.0M Overview

Use the download button to access the TB622-100.0M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB622, or try a keyword search, such as TCXO
