TB62747AFG,EL - Toshiba

Description: LED Lighting Drivers 16-Output Constant Current LED Driver

Download TB62747AFG,EL Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TB62747AFG,EL model

Email notifications will be applied after download.

Send part feedback

Symbol

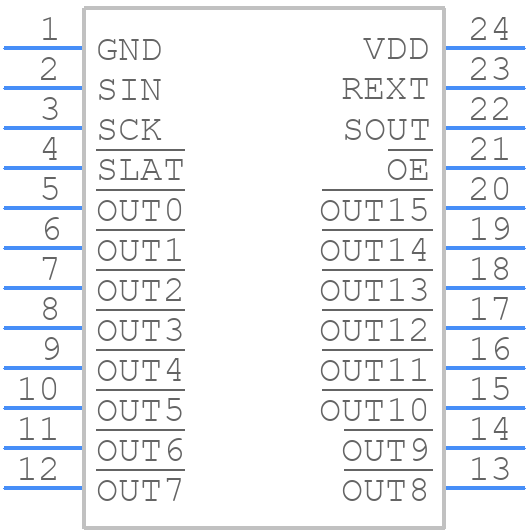

TB62747AFG,EL - Toshiba - PCB symbol

PCB Footprints

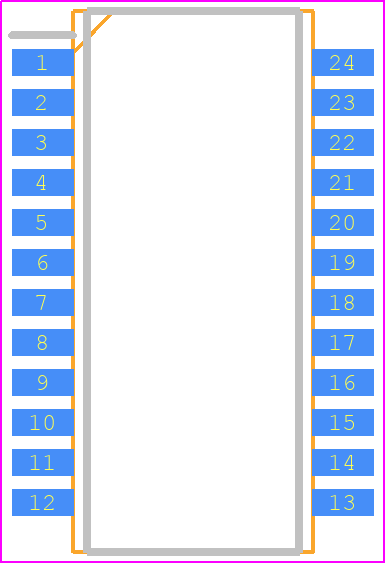

TB62747AFG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP24-P-300-1.00B_

Datasheet Download Datasheet
Stock & Prices Price & Stock for TB62747AFG,EL
Part Number TB62747AFG,EL
Manufacturer Toshiba
Pin Count 24
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP24-P-300-1.00B_
Released Date Apr 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TB62747AFG,EL Details

Manufacturer Part Number:
TB62747AFG,EL
Manufacturer:
Toshiba America Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

TB62747AFG,EL Overview

Use the download button to access the TB62747AFG,EL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TB627, or try a keyword search, such as Display Drivers
