TBD62003AFG,EL - Toshiba

Description: Gate Drivers DMOS Transistor Array 7-CH, 50V/0.5A

Download TBD62003AFG,EL Model
Schematic
symbols

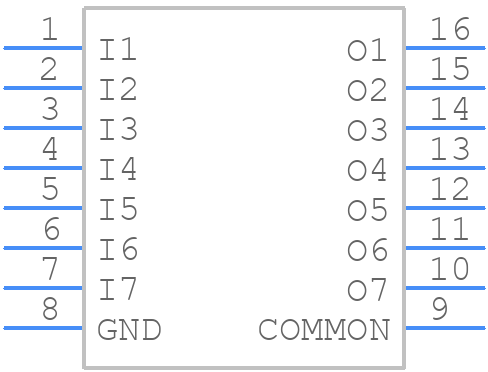

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62003AFG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-225-1.27
click to zoom
3D Models
TBD62003AFG,EL - Toshiba  - 3D model - Small Outline Packages - SOP16-P-225-1.27
click to zoom

TBD62003AFG,EL Details

  • Manufacturer Part Number:

    TBD62003AFG,EL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.5 mm

  • Number of Functions:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    7 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    4.4 mm

TBD62003AFG,EL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TBD62003AFG,EL is 1.7V to 3.6V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of VCC, then VIO, and a power-down sequence of VIO, then VCC.
  • The maximum allowable power dissipation for TBD62003AFG,EL is 500mW.
  • To prevent ESD damage, it is recommended to use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures.
  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Thermal management should include a heat sink and thermal interface material.
