TBD62003APG - Toshiba

Description: Gate Drivers DMOS Transistor Array 7-CH, 50V/0.5A

Download TBD62003APG Model

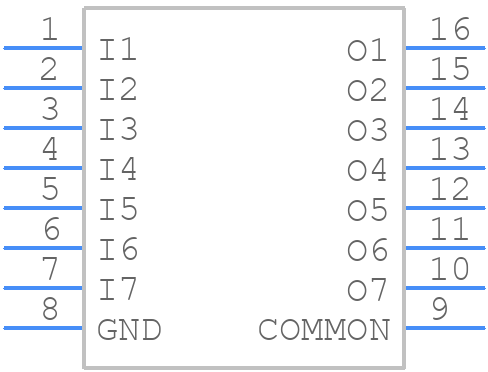

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62003APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom
3D Models
TBD62003APG - Toshiba  - 3D model - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom

TBD62003APG Details

  • Manufacturer Part Number:

    TBD62003APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.62

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Number of Functions:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    NO

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7.62 mm

TBD62003APG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TBD62003APG is 1.7V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of VCC, then VBB, and a power-down sequence of VBB, then VCC.
  • The maximum allowable power dissipation for TBD62003APG is 500mW.
  • To prevent ESD damage, it is recommended to use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures.
  • A recommended PCB layout for TBD62003APG includes using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to reduce noise and improve stability.
