TBD62083AFG,EL - Toshiba

Description: Gate Drivers DMOS Transistor Array 7-CH, 50V/0.5A

Download TBD62083AFG,EL Model

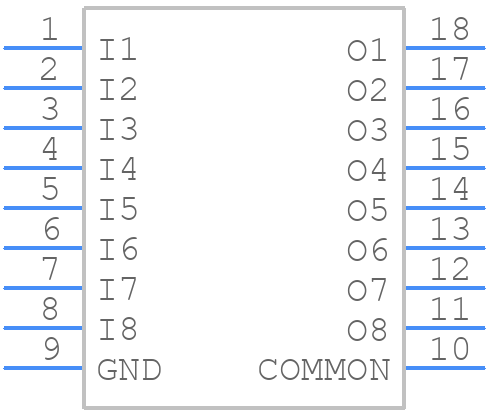

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TBD62083AFG,EL
click to zoom
3D Models
TBD62083AFG,EL - Toshiba  - 3D model - Small Outline Packages - TBD62083AFG,EL
click to zoom

TBD62083AFG,EL Details

  • Manufacturer Part Number:

    TBD62083AFG,EL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    13 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7 mm

TBD62083AFG,EL Frequently Asked Questions (FAQs)

  • Toshiba recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and VDD pins. Additionally, keep the analog and digital signal traces separate and avoid routing them near the power pins.
  • Toshiba recommends using a heat sink with a thermal resistance of 10°C/W or less, and ensuring good airflow around the device. Also, consider using a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
  • Toshiba recommends using ESD protection devices such as TVS diodes or ESD arrays on the input pins, and following proper handling and storage procedures to prevent ESD damage.
  • Toshiba recommends powering up the VCC pin first, followed by the VDD pin, and then the input signals. This sequence helps prevent latch-up and ensures reliable operation.
