TBD62083AFG(Z,EL) - Toshiba

Description: Transistor Array 8-Ch 500mA 50V SOP18

Download TBD62083AFG(Z,EL) Model
Schematic
symbols

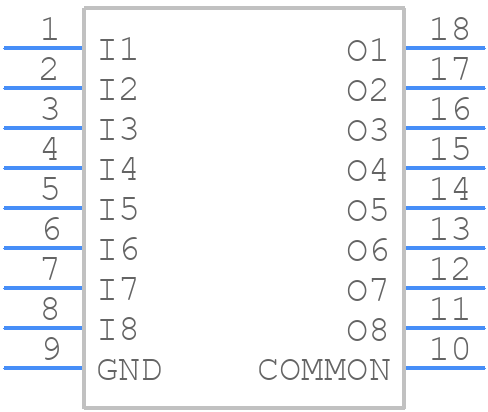

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFG(Z,EL) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP18-P-375-1.27
click to zoom
3D Models
TBD62083AFG(Z,EL) - Toshiba  - 3D model - Small Outline Packages - SOP18-P-375-1.27
click to zoom

TBD62083AFG(Z,EL) Details

  • Manufacturer Part Number:

    TBD62083AFG(Z,EL)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    13 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7 mm

TBD62083AFG(Z,EL) Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and away from the analog signals. Use a common mode choke and a ferrite bead to filter the power supply.
  • Monitor the junction temperature (TJ) and ensure it stays within the recommended range of -40°C to 125°C. Also, ensure the input voltage (VIN) is within the recommended range of 2.5V to 5.5V.
  • The maximum allowable power dissipation is 1.5W. Ensure the device is properly heat-sinked and the ambient temperature is within the recommended range to prevent overheating.
  • Yes, TBD62083AFG(Z,EL) is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • Use an oscilloscope to monitor the input and output signals. Check for proper power supply decoupling, ensure the device is properly heat-sinked, and verify the PCB layout meets the recommended guidelines.
