TBD62083AFNG,EL - Toshiba

Description: BiCD Integrated Circuit Silicon Monolithic

Download TBD62083AFNG,EL Model
Schematic
symbols

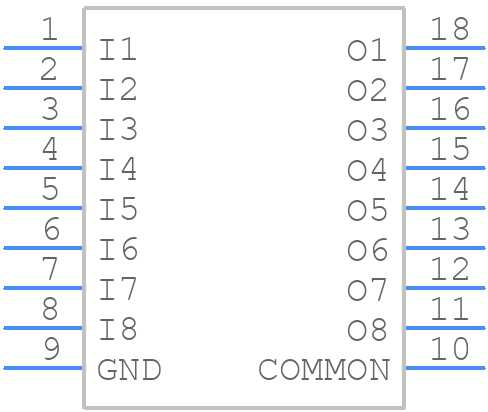

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFNG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP18-P-375-1.27
click to zoom
3D Models
TBD62083AFNG,EL - Toshiba  - 3D model - Small Outline Packages - SOP18-P-375-1.27
click to zoom

TBD62083AFNG,EL Details

  • Manufacturer Part Number:

    TBD62083AFNG,EL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    6.5 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP18,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    4.4 mm

TBD62083AFNG,EL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for TBD62083AFNG,EL is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signal traces separate to minimize noise and interference.
  • To ensure the TBD62083AFNG,EL is properly powered, use a high-quality power supply with low ripple and noise, and decouple the power pins with 0.1uF and 10uF capacitors to reduce noise and voltage drops.
  • The maximum operating temperature range for TBD62083AFNG,EL is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the TBD62083AFNG,EL, use a logic analyzer or oscilloscope to monitor the input and output signals, and check the power supply and PCB layout for any issues or noise.
  • Yes, the TBD62083AFNG,EL is suitable for high-reliability applications, but it's recommended to follow Toshiba's guidelines for reliability and to perform thorough testing and validation to ensure the device meets the required standards.
