Part Image

TBD62083AFNG - Toshiba

Description: IC PWR SWITCH N-CHAN 1:1 18SSOP

Download TBD62083AFNG Model

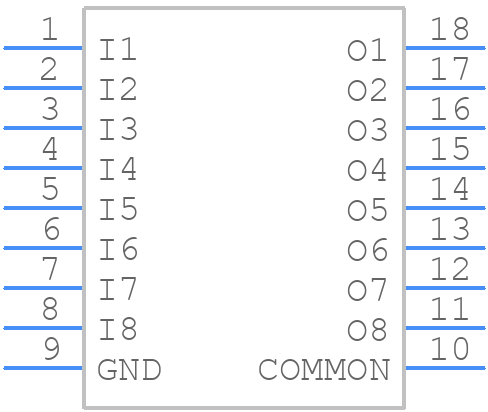

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFNG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP18-P-225-0.65
click to zoom
3D Models
TBD62083AFNG - Toshiba  - 3D model - Small Outline Packages - SSOP18-P-225-0.65
click to zoom

TBD62083AFNG Details

  • Manufacturer Part Number:

    TBD62083AFNG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP18,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    4.4 mm

TBD62083AFNG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the power supply and the output capacitors should be placed close to the device.
  • The device should be mounted on a heat sink with a thermal resistance of less than 10°C/W. The heat sink should be connected to a solid ground plane to ensure good thermal conductivity.
  • The maximum allowed voltage on the input pins is 6.5V. Exceeding this voltage may cause damage to the device.
  • The TBD62083AFNG is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum operating temperature should be derated accordingly.
  • Check the power supply voltage, input signals, and output loads. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check the output waveforms and verify that they meet the expected specifications.
