Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, use a heat sink if necessary, and consider derating the device's power consumption according to the temperature derating curve provided in the datasheet.
The TBD62083AFWG,EL has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the TBD62083AFWG,EL is a general-purpose device, it's not specifically designed for automotive applications. For automotive use, consider Toshiba's automotive-grade equivalent, which meets the AEC-Q100 standard.
Toshiba recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TBD62083AFWG,EL Overview

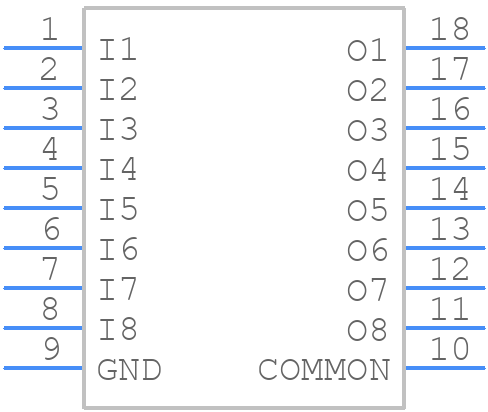

Use the download button to access the TBD62083AFWG,EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBD62,
or try a keyword search, such as Peripheral Drivers
