TBD62083AFWG - Toshiba

Description: Power Switch/Driver 1:1 N-Channel 500mA 18-SOP

Download TBD62083AFWG Model

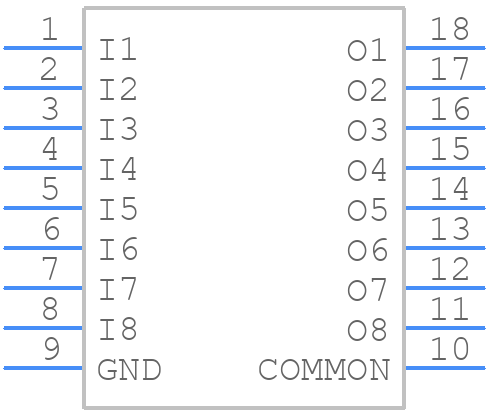

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFWG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-SOP18-0812-1.27-001
click to zoom
3D Models
TBD62083AFWG - Toshiba  - 3D model - Small Outline Packages - P-SOP18-0812-1.27-001
click to zoom

TBD62083AFWG Details

  • Manufacturer Part Number:

    TBD62083AFWG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    11.515 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.85 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7.495 mm

TBD62083AFWG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The TBD62083AFWG has an exposed thermal pad, so a thermal relief pattern on the PCB is necessary to ensure good thermal conductivity.
  • Ensure that the TBD62083AFWG is operated within its recommended temperature range (-40°C to 125°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, ensure that the PCB is designed to minimize thermal resistance.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the TBD62083AFWG as possible to minimize parasitic inductance.
  • Use a shielded enclosure, keep the TBD62083AFWG away from antennas and other EMI-sensitive components, and use a common-mode choke or ferrite bead on the input lines to reduce EMI emissions.
  • The maximum allowed voltage drop across the TBD62083AFWG is 0.5V. Exceeding this voltage drop may affect the device's reliability and performance.
