TBD62089APG - Toshiba

Description: • Built-in 8 circuits • High output voltage : VOUT = 50 V (max) • High output current : IOUT = 500 mA/ch (max) • Package : DIP20-P-300-2.54A

Download TBD62089APG Model

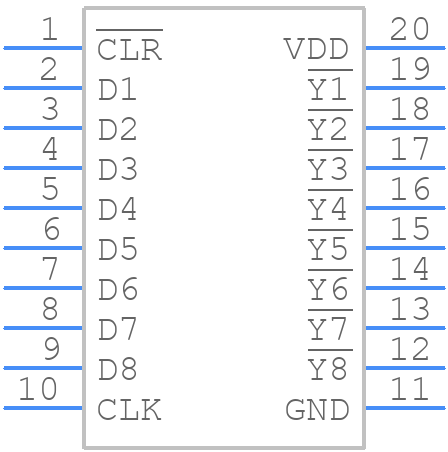

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

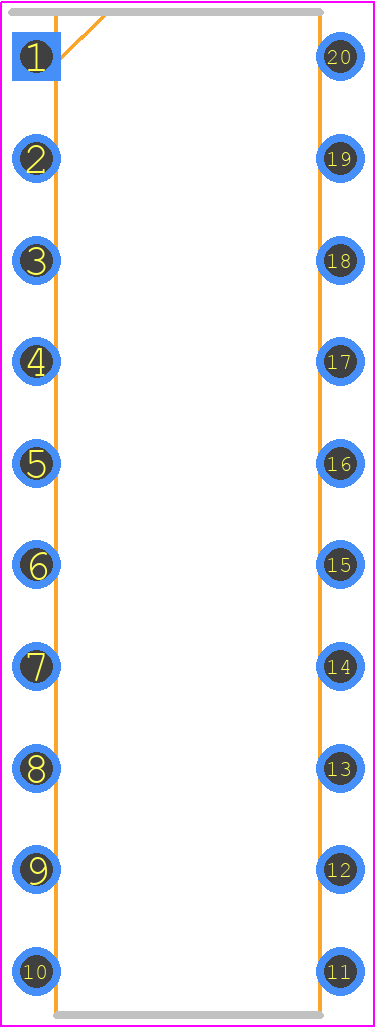

PCB Footprints
TBD62089APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20-P-300-2.54A
click to zoom
3D Models
TBD62089APG - Toshiba  - 3D model - Dual-In-Line Packages - DIP20-P-300-2.54A
click to zoom

TBD62089APG Details

  • Manufacturer Part Number:

    TBD62089APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-12-22

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TBD62089APG Frequently Asked Questions (FAQs)

  • Toshiba recommends a 4-layer PCB with a solid ground plane and a separate power plane for the TBD62089APG. The device should be placed near the power supply and away from high-frequency components. A minimum of 10mil clearance between the device and other components is recommended.
  • To ensure reliable operation at high temperatures, it's essential to provide adequate heat dissipation. Toshiba recommends using a heat sink with a thermal resistance of 10°C/W or less, and ensuring that the device is operated within the recommended temperature range of -40°C to 125°C.
  • The maximum allowed voltage on the input pins is 5.5V, which is higher than the recommended operating voltage of 3.3V. However, exceeding the recommended operating voltage can reduce the device's lifespan and affect its performance.
  • Yes, the TBD62089APG can be used in battery-powered devices. However, it's essential to consider the device's power consumption and ensure that the battery life meets the system requirements. Toshiba recommends using a low-dropout regulator (LDO) to regulate the power supply voltage.
  • To troubleshoot issues with the TBD62089APG, Toshiba recommends checking the power supply voltage, ensuring that the device is properly connected, and verifying that the input signals are within the recommended specifications. Additionally, using an oscilloscope to monitor the output signals can help identify any issues.
