TBD62502AFWG - Toshiba

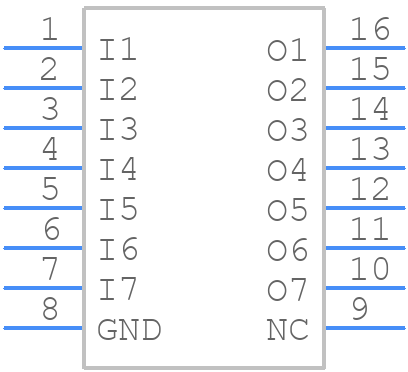

TBD62502AFWG Details

• Manufacturer Part Number:

  TBD62502AFWG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  7.3

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  7

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  10 mm

• Number of Functions:

  7

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  0.25 A

• Output Peak Current Limit-Nom:

  0.25 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.73 mm

• Supply Current-Max:

  1 mA

• Supply Voltage-Max:

  25 V

• Supply Voltage-Min:

  14 V

• Supply Voltage-Nom:

  14 V

• Surface Mount:

  YES

• Technology:

  DMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.8 µs

• Turn-on Time:

  0.4 µs

• Width:

  3.9 mm
