TBD62783AFG,EL - Toshiba

Description: Gate Drivers DMOS Transistor Array8-CH, 50V/0.5A

Download TBD62783AFG,EL Model

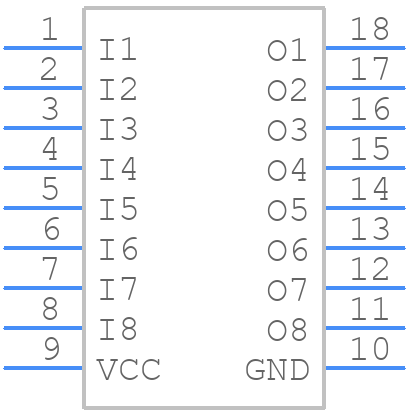

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62783AFG,EL - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP18-P-3.75-1.27
click to zoom
3D Models
TBD62783AFG,EL - Toshiba  - 3D model - Small Outline Packages - SOP18-P-3.75-1.27
click to zoom

TBD62783AFG,EL Details

  • Manufacturer Part Number:

    TBD62783AFG,EL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    12.5 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7 mm

TBD62783AFG,EL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and away from the output stage. Use a common mode choke and a ferrite bead to filter the input power.
  • To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output voltage is within the specified range, and the input voltage is stable and within the recommended range.
  • The maximum ambient temperature for TBD62783AFG,EL is 85°C. However, it's recommended to derate the output current by 1.5% per degree above 60°C to ensure reliable operation.
  • Yes, TBD62783AFG,EL is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the TBD62783AFG,EL if it falls outside the recommended range. Also, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TBD62783AFG,EL Overview

Use the download button to access the TBD62783AFG,EL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBD62, or try a keyword search, such as Peripheral Drivers
