TBD62785APG - Toshiba

Description: Gate Drivers DMOS Transistor Array 8-CH 50V -0.5A

Download TBD62785APG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

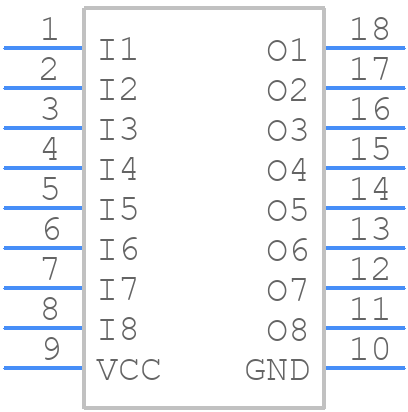

TBD62785APG - Toshiba - PCB symbol
click to zoom
PCB Footprints

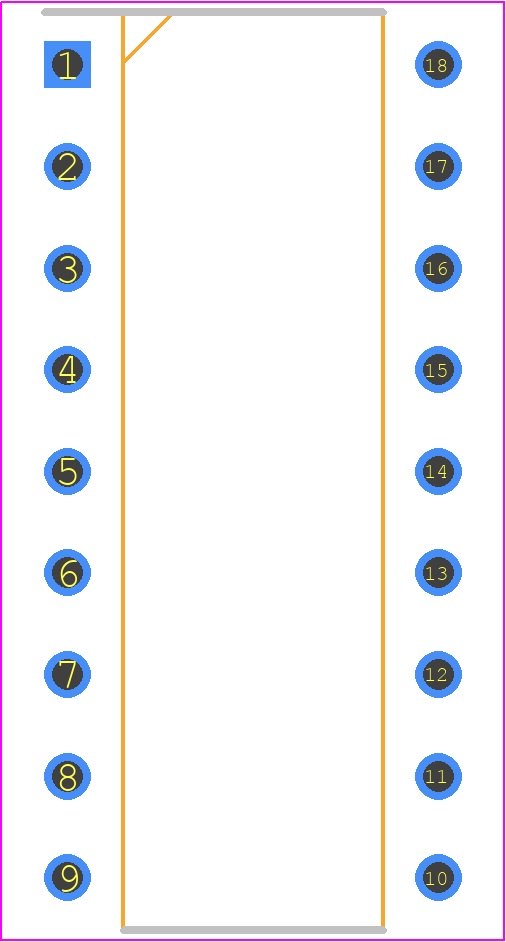

TBD62785APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-DIP18-300-2.54-001
click to zoom
3D Models
TBD62785APG - Toshiba - 3D model - Dual-In-Line Packages - P-DIP18-300-2.54-001
click to zoom

TBD62785APG Details

  • Manufacturer Part Number:

    TBD62785APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TBD62785APG Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or a thermal management system, and ensure the device is operated within the recommended temperature range (up to 150°C).
  • The maximum allowable voltage for the input pins is 7V, exceeding which may cause damage to the device.
  • Yes, the TBD62785APG is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize EMI and noise.
  • Implement ESD protection circuits, such as TVS diodes or ESD arrays, and follow proper handling and storage procedures to prevent latch-up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TBD62785APG Overview

Use the download button to access the TBD62785APG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBD62, or try a keyword search, such as Peripheral Drivers
