TBD62786APG - Toshiba

Description: Gate Drivers DMOS Transistor Array 8-CH 50V -0.5A

Download TBD62786APG Model
Schematic

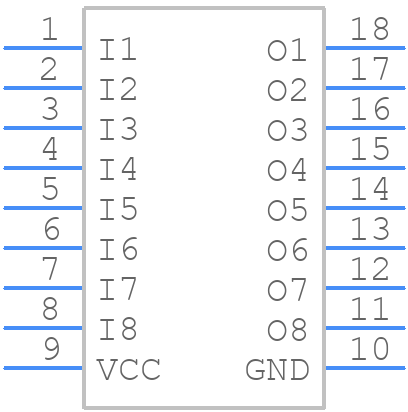

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

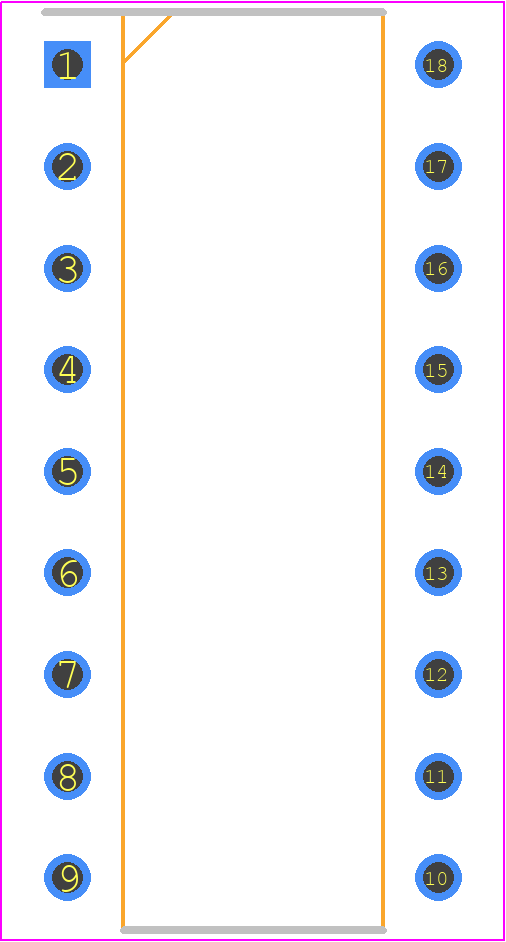

TBD62786APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-DIP18-300-2.54-001--
click to zoom
3D Models
TBD62786APG - Toshiba  - 3D model - Dual-In-Line Packages - P-DIP18-300-2.54-001--
click to zoom

TBD62786APG Details

  • Manufacturer Part Number:

    TBD62786APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TBD62786APG Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider derating the device's power dissipation according to the ambient temperature.
  • Although the datasheet doesn't specify a maximum allowable voltage, it's generally recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
  • Yes, the TBD62786APG can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and that the switching frequency is within the recommended range to prevent oscillation.
  • To troubleshoot issues with the TBD62786APG, start by verifying the power supply voltage, checking for proper PCB layout and thermal design, and ensuring that the input and output pins are not overloaded. Use an oscilloscope to check for abnormal voltage waveforms or oscillations.
