A good PCB layout for the TBU-PL085-100-WH would involve keeping the device as close to the protected circuit as possible, using short and wide traces for the high-current paths, and ensuring good thermal conductivity to dissipate heat efficiently.
The TBU-PL085-100-WH is designed to handle inrush currents during power-on by using a thermally enhanced design that allows it to absorb high currents during the initial power-up phase, and then limiting the current to a safe level once the system is operational.
Yes, the TBU-PL085-100-WH is rated for operation up to 125°C, making it suitable for use in high-temperature environments. However, it's essential to ensure proper thermal management and heat sinking to prevent overheating.
The TBU-PL085-100-WH is designed to respond quickly to fault conditions such as overvoltage or overcurrent by limiting the current and protecting the downstream circuitry. The device will reset once the fault condition is removed.
Yes, the TBU-PL085-100-WH is designed to operate in high-frequency circuits up to 1 MHz, making it suitable for use in a wide range of applications, including power supplies, motor control, and industrial automation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TBU-PL085-100-WH Overview

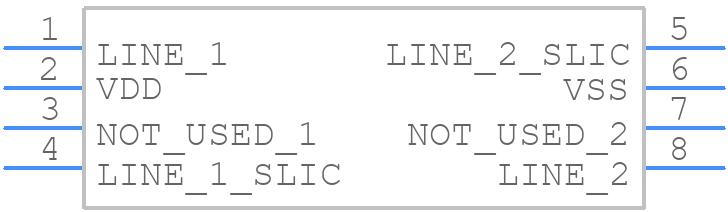

Use the download button to access the TBU-PL085-100-WH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBU-P,
or try a keyword search, such as Telecom Protection Circuits
