TBU-PL085-200-WH - Bourns

Description: Surge Suppressors Dual 50ohm TBU Devce Bi-directional

Download TBU-PL085-200-WH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

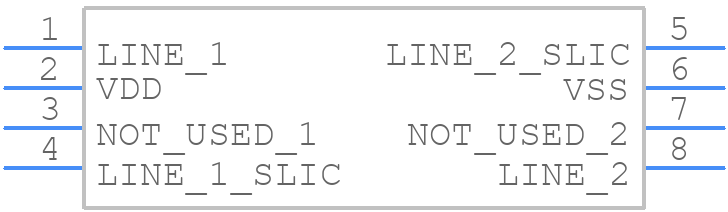

Symbol
TBU-PL085-200-WH - Bourns - PCB symbol
click to zoom
PCB Footprints
TBU-PL085-200-WH - Bourns PCB footprint - Other - Other - TBU-PL085-100-WH
click to zoom
3D Models
TBU-PL085-200-WH - Bourns - 3D model - Other - TBU-PL085-100-WH
click to zoom

TBU-PL085-200-WH Details

  • Manufacturer Part Number:

    TBU-PL085-200-WH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • JESD-30 Code:

    R-XBCC-B8

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VBCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    GAS DISCHARGE TUBE SUPPRESSOR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BUTT

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

TBU-PL085-200-WH Frequently Asked Questions (FAQs)

  • A good PCB layout for the TBU-PL085-200-WH would involve keeping the device as close to the protected circuit as possible, using short and wide traces for the high-current paths, and ensuring good thermal conductivity to dissipate heat efficiently.
  • To select the correct TBU-PL085-200-WH, consider the maximum voltage, current, and power requirements of your application, as well as the desired level of overcurrent protection. Consult the datasheet and application notes for guidance.
  • The response time of the TBU-PL085-200-WH is typically in the range of microseconds, allowing it to quickly respond to overcurrent events and protect the downstream circuitry.
  • The TBU-PL085-200-WH is rated for operation up to 85°C, but it can be derated for higher temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • The TBU-PL085-200-WH is designed to handle inrush currents during power-on, but it's essential to ensure that the device is properly sized for the application and that the inrush current does not exceed the device's maximum ratings.
