TC1-1-13M-75+ footprint, schematic symbol and 3D model by Mini-Circuits

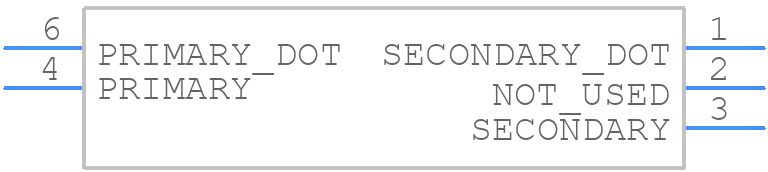

Symbol

click to zoom

PCB Footprints

TC1-1-13M-75+ - Mini-Circuits PCB footprint - Other - Other - AT224-1A_2024

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC1-1-13M-75+
Part Number TC1-1-13M-75+
Manufacturer Mini-Circuits
Pin Count 5
Part Category Transformer
Package Category Other
Footprint Name Other - AT224-1A_2024
Released Date May 7, 2024
Last Modified Date May 7, 2024 3:34 AM UTC
Pinout / Pin List Click Here (Member Only)

TC1-1-13M-75+ Details

Manufacturer Part Number:
TC1-1-13M-75+
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL
Cut-off Frequency-Min:
4.5 MHz
Height:
4.06 mm
Insertion Loss:
3 dB
Length:
3.81 mm
Mounting Feature:
SURFACE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 13 INCH
Surface Mount:
YES
Transformer Type:
RF TRANSFORMER
Width:
3.81 mm

TC1-1-13M-75+ Frequently Asked Questions (FAQs)

The maximum operating temperature range for the TC1-1-13M-75+ is -40°C to +85°C.
Yes, the TC1-1-13M-75+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical insertion loss of the TC1-1-13M-75+ is around 0.5 dB, but this can vary depending on the specific application and frequency range.
The TC1-1-13M-75+ is designed for low-power applications, and its maximum power rating is 1 watt. It is not suitable for high-power applications.
The TC1-1-13M-75+ is designed for indoor use, and its environmental rating is IP40. It is not suitable for outdoor use or exposure to harsh environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

TC1-1-13M-75+ Overview

Use the download button to access the TC1-1-13M-75+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers
