Part Image

TC1-1-13MA+ - Mini-Circuits

Description: RF TRANSFORMER, 4.5 - 3000 MHZ,

Download TC1-1-13MA+ Model

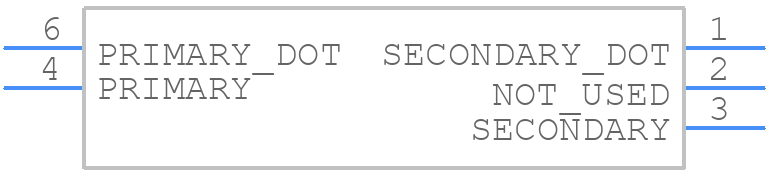

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC1-1-13MA+ - Mini-Circuits PCB footprint - Other - Other - AT224-1A_2021
click to zoom
3D Models
TC1-1-13MA+ - Mini-Circuits  - 3D model - Other - AT224-1A_2021
click to zoom

TC1-1-13MA+ Details

  • Manufacturer Part Number:

    TC1-1-13MA+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    3000 MHz

  • Cut-off Frequency-Min:

    4.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    3000000 kHz

  • Operating Frequency-Min:

    4500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Primary Impedance:

    50 OHMS

  • Secondary Impedance:

    50 OHMS

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1-13MA+ Frequently Asked Questions (FAQs)

  • A recommended PCB layout and footprint can be found in the Mini-Circuits application note AN-60-001, which provides guidelines for optimal performance and minimization of parasitic effects.
  • The TC1-1-13MA+ has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and keep the component away from heat sources. Follow the recommended PCB layout and thermal management guidelines in the datasheet.
  • Follow the recommended soldering process outlined in the Mini-Circuits application note AN-60-002, which provides guidelines for reflow soldering, wave soldering, and hand soldering.
  • Common issues include overheating, poor impedance matching, and signal degradation. Troubleshoot by checking the PCB layout, thermal management, and signal integrity. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
  • Store the component in a dry, cool place, away from direct sunlight and moisture. Operating temperature range is -40°C to 85°C, and storage temperature range is -40°C to 100°C. Follow the recommended storage and handling guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1-13MA+ Overview

Use the download button to access the TC1-1-13MA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
